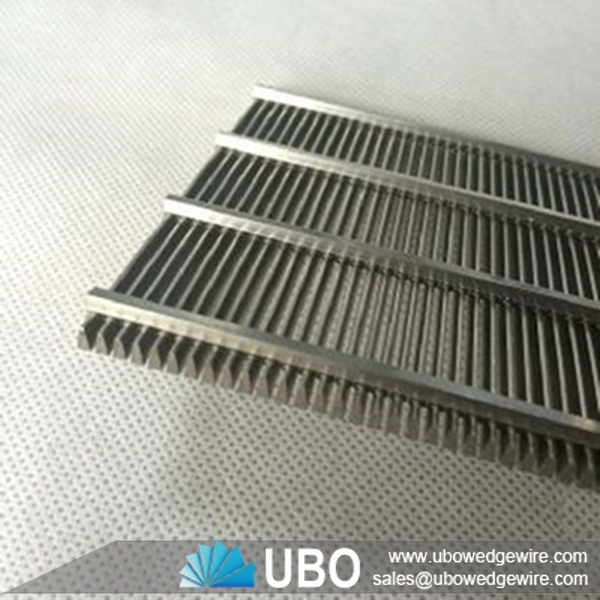

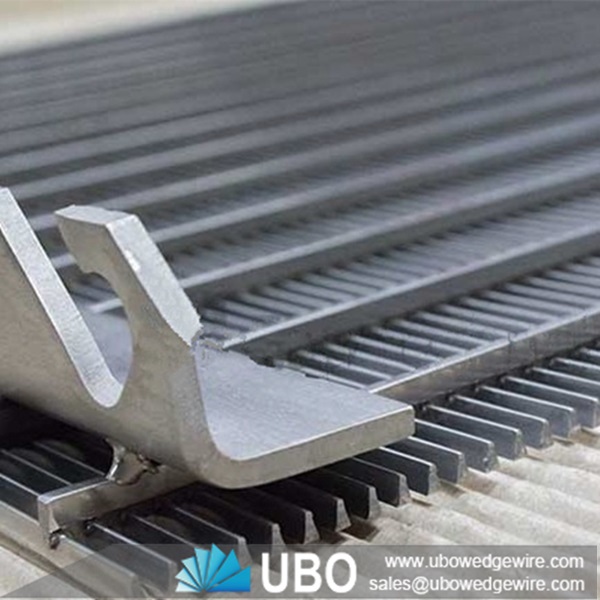

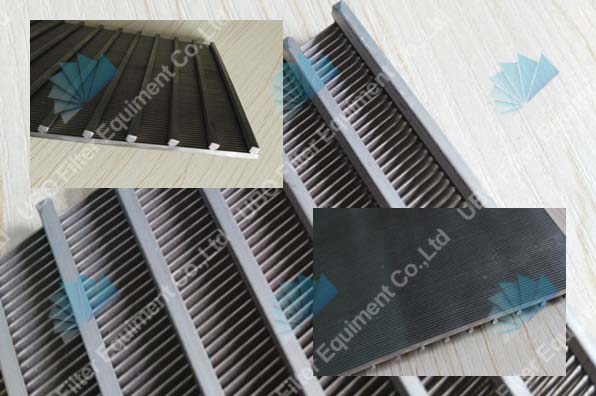

SS Flat Wedge Wire Screen Panel for Filtration

Wedge wire, also known as "profile wire", "V-wire" or "tri-wire" is an effective solution for many companies as it is used to filter solid particles from liquids, filtration, dewatering and other collection and distribution needs.

The screens are produced depending on the industry's standard size; however customization is also available depending on the client's preference. Each screen consists of surface profiles which are in a v-shaped form providing precision, great resistance and longer service life. The company can produce a minimum slot of 20 microns.

Features of SS Flat Wedge Wire Screen Panel for Filtration

The welded stainless steel water well screen is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire). Water well screens have a structure and high open area, as well as accurate slot dimension. At the same time, water well screen have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.

Advantage of SS Flat Wedge Wire Screen Panel for Filtration

-- A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone.

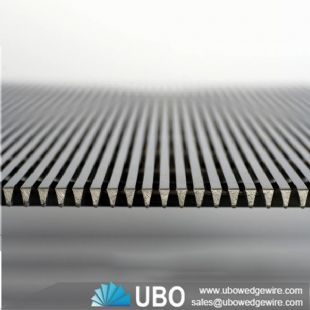

-- A “V”shaped profile wire which avoids clogging and ensures an uninterrupted flow.

-- A uniform and efficient well development due to the continuous slot opening.

-- Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.

-- Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.

Applications of SS Flat Wedge Wire Screen Panel for Filtration

Stainless steel wire mesh wedge wire screen is widely used for wine-making, malting, paper making, mining, cement producing, food processing, oil-refining, painting as well as the industries of cigarete, sugar, foodstuff, noise silencer, environmetal protection, agricultural machine, chemical industry and pharmacy industry.

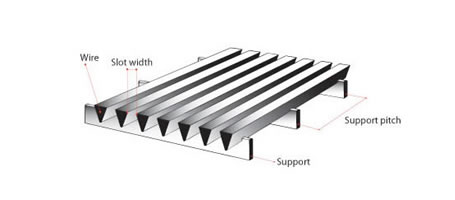

1) material:stainless steel 304,316,etc

2) slot size:0.1-5mm or customer's requirement

3) support bars pitch:1.5-3cm or customer's requirement

4) wedge wire size: 1.5x2.2mm,1.5x2.5mm,2.3x3.6mm,1.8x4.3mm,3.0x4.7mm,etc

5) support bars size: 2.3x2.7mm,2.3x3.6mm,3.0x4.7mm,3.7x5.6mm,3.3x6.3mm,etc
