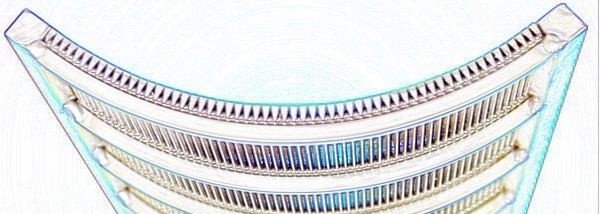

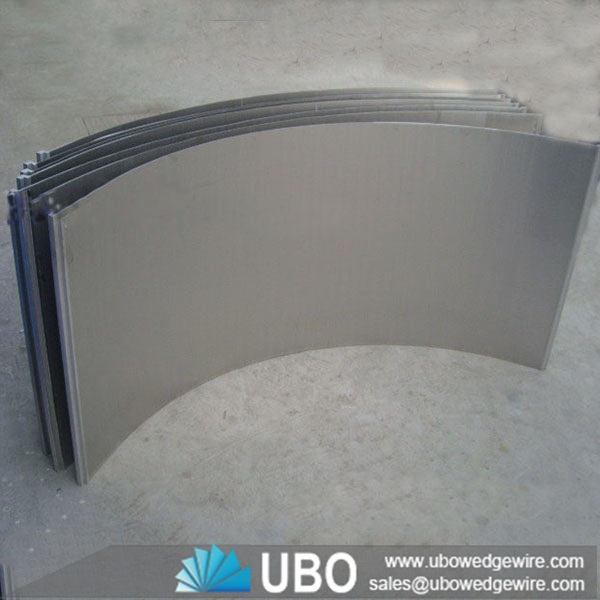

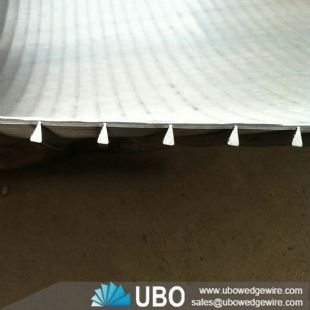

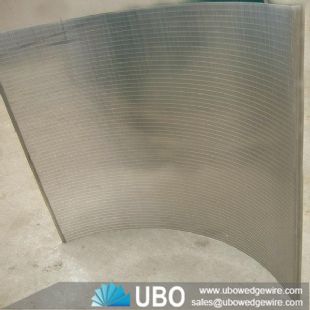

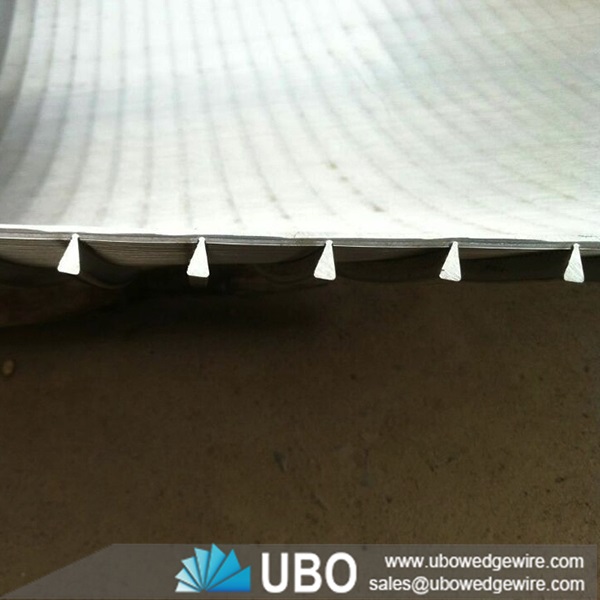

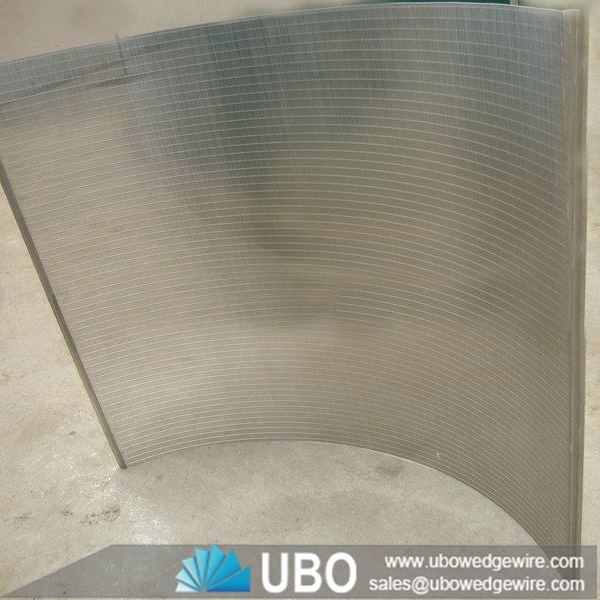

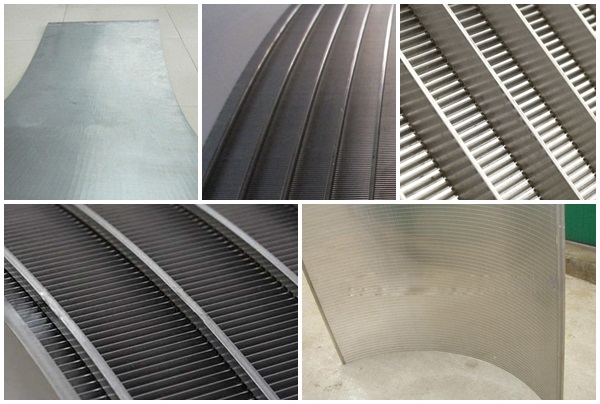

High quality sieve bend screen for cornstarch equipment
Category: | Wedge Wire Application |
---|---|
Material: | SS 304,316,316L, Stainless steel and carbon steel. |
Properties: | Wedge Wire Screen |
Application: | waste water filtration, pulp and paper as well as mineral processing applications. Wedge wire or profile screen half cylinders can be added to an au |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of High quality sieve bend screen for cornstarch equipment

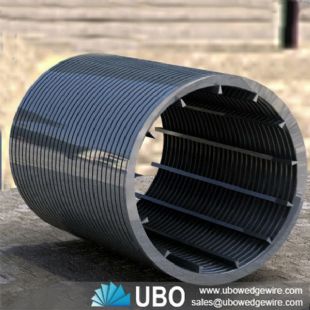

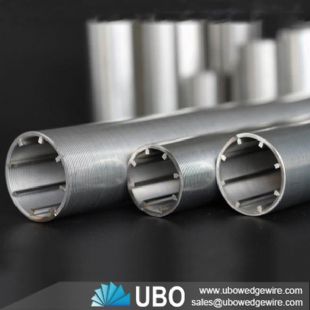

Wire wrapped screen is manufactured by a V or wedge shaped wire around an internal array of longitudinal support rods. Each intersection point of this wire is fusion welded. The V or wedge shaped profile wire wraps around the support rods over the full length of the screen creating a continuous slot opening
Applications for sieve bend screen for corn starch equipment:
This series of Round Vibrating Screen is specially designed for stone pit to serve different sizes of stones. It is also used in coal dressing, ore dressing, building material electric and chemical industries etc. It adopts box-vibrating exciter and block-eccentric adjustment. It owns features as follows, advanced structure, safety use, and adjustable amplitude strength, low noise, sturdy and durable.
Features for sieve bend screen for corn starch equipment:
It features long flowing line, many screening specifications, strong violent force, high screening efficiency, small vibrating noises, firm and durable construction, convenient maintenance and safe operati
Advatanges for sieve bend screen for corn starch equipment:
The benefit of wedge wire screen is more open area, have very precise openings ,maximum design flexibility, stronger and more durable, economical ,easier installation and long-term operating etc.
Working principle for sieve bend screen for corn starch equipment:
The vibrating screen consists of screen box, supporting device, vibration exciter, transmission part, etc. The barrel-type vibration exciter is installed in the middle part of the machine. During normal operation, the vibration of exciter will drive the screen mesh fixed on the screen box vibrate, and then materials will be screened. The big and small materials fall from the upper side and lower side of the screen to get them separated.
Specifications of High quality sieve bend screen for cornstarch equipment:
Outside Diameter
|
Profile
wire
|
Rod
wire
|
Rod
quantity
|
Slot
size
|
Length
|
||
DN
|
Inch
|
mm
|
mm
|
mm
|
|
mm
|
mm
|
20
|
3/4
|
26.9
|
1.5*2
|
2*3
|
12
|
0.1~0.25
|
45~3000
|
25
|
1
|
33.7
|
1.5*2
|
2*3
|
14
|
0.1~0.25
|
45~3000
|
32
|
1~1/4
|
42.4
|
1.5*2
|
2*3
|
16
|
0.1~0.25
|
45~3000
|
40
|
1~1/2
|
48.3
|
1.5*2
|
2*3
|
16
|
0.1~0.25
|
45~3000
|
50
|
2
|
60.3
|
1.5*2
|
2*3
|
18
|
0.1~0.5
|
45~3000
|
65
|
2~2/2
|
76.1
|
1.5*2
|
2*3
|
20
|
0.1~0.5
|
45~3000
|
80
|
3
|
88.9
|
1.8*2.5
|
2*3
|
24
|
0.1~0.5
|
45~3000
|
100
|
4
|
114.3
|
1.8*2.5
|
2*3
|
30
|
0.5~2
|
1000~6000
|
125
|
5
|
139.7
|
2.3*2.7
|
2*3
|
36
|
0.5~2
|
1000~6000
|
150
|
6
|
168.3
|
2.3*2.7
|
3*5
|
44
|
0.5~2
|
1000~6000
|
200
|
8
|
219.1
|
3.3*4.5
|
3*4.7
|
56
|
0.5~2
|
1000~6000
|
250
|
10
|
273
|
3.3*4.5
|
4*6
|
66
|
0.5~2
|
1000~6000
|
300
|
12
|
323.9
|
3.3*4.7
|
4*6
|
72
|
0.5~2
|
1000~6000
|
350
|
14
|
355.6
|
3.7*5
|
4*6
|
80
|
0.5~2
|
1000~6000
|
400
|
16
|
406.4
|
1.5*2
|
2*3
|
94
|
0.1~2
|
1000~6000
|
450
|
18
|
457
|
2*3
|
4*5
|
112
|
0.1~2
|
500~400
|
500
|
20
|
508
|
2*3
|
4*5
|
124
|
0.1~2
|
500~400
|
550
|
22
|
559
|
2*3
|
4*5
|
140
|
0.1~2
|
500~400
|
600
|
24
|
610
|
2*3
|
4*5
|
156
|
0.1~2
|
500~400
|
Siot:0.1mm~2mm Tolerance:0.05
|
