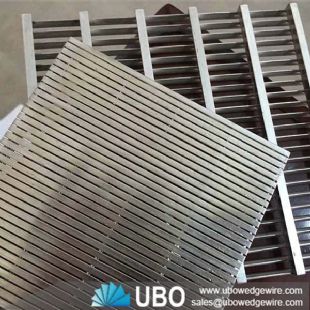

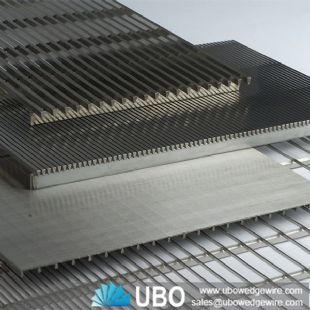

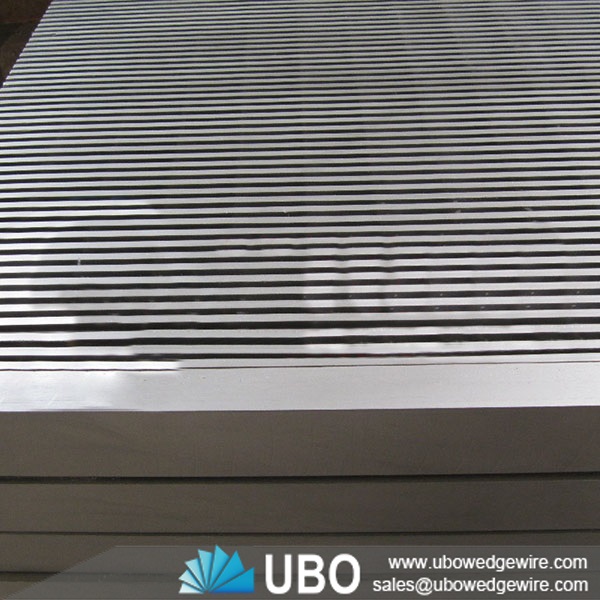

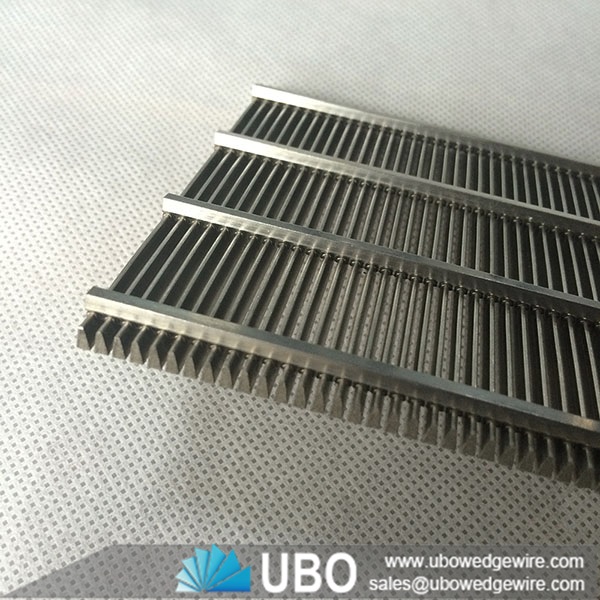

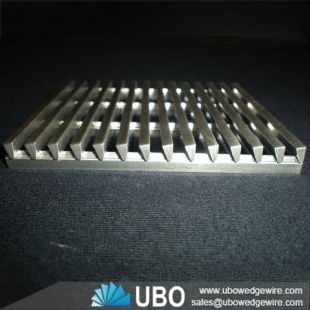

Corrosion resistance wedge wire screen fish diversion screen panel

More Views

Corrosion resistance wedge wire screen fish diversion screen panelCorrosion resistance wedge wire screen fish diversion screen panelCorrosion resistance wedge wire screen fish diversion screen panel

Corrosion resistance wedge wire screen fish diversion screen panel

Category:Wedge Wire Application
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:wedge wire screen
Application:filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Corrosion resistance wedge wire screen fish diversion screen panel

Wedge Wire wedge wire screen plates are made in panel or cylinder type from V shaped wedge wire, with an unique welding process, offering great strength, precision, long service life .Wedge Wire wedge wire screen plate offer a perfectly flat and smooth surface with rectangular openings.This kind of wedge wire can replace traditional media like wire mesh cloth, perforated plate and other metal sifting materials as components for rotary screen, well screen, quarry screen, etc.

Applications for corrosion resistance wedge wire screen fish diversion screen panel:

Widely uses in mine, coal, oil, fertilizer, grain, salt, and environmental protection industries.For filtering of liquid, the powder material. On petroleum, chemical industry, metallurgy, mine, medicine purifies, the drilling mud purifies the equipment in particular the important fitting. It’s also widely used for Trench Cover.

Features for corrosion resistance wedge wire screen fish diversion screen panel:

The welded stainless steel water well screen is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire). Water well screens have a structure and high open area, as well as accurate slot dimension. At the same time, water well screen have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.

Advantages for corrosion resistance wedge wire screen fish diversion screen panel:

1) A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone.

2) A Vshaped profile wire which avoids clogging and ensures an uninterrupted flow.

3) A uniform and efficient well development due to the continuous slot opening.

4) Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.

5) Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.

Features for Corrosion resistance wedge wire screen fish diversion screen panel:

1) Screens with high open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.

2) Low cost operation Screens with high open area shall favor groundwater infiltration. Abundant water shall reduce the water levels down, thus to save energy consumption.

3) Reduce the abrasion of the pump

Under the same condition, high open area can make the speed of groundwaters entering into the screen much slower than any other filtration apparatus, which will avoid sands entering into screen because of high pressure, thus reduce the abrasion of the pump.

4) Extend the life span of wells

Comparatively, groundwaters entering into screen with higher open area is much easier than the entering into lower open area screen. The slow water flow shall extend the life span of wells.

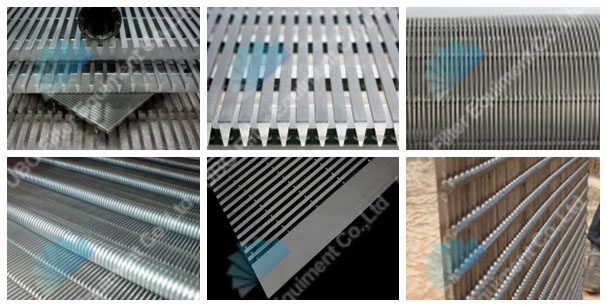

Corrosion resistance wedge wire screen fish diversion screen panel

Specifications of Corrosion resistance wedge wire screen fish diversion screen panel:

Corrosion resistance wedge wire screen fish diversion screen panel


Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70  Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70  Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

Packaging and Transportation of Corrosion resistance wedge wire screen fish diversion screen panel:

Corrosion resistance wedge wire screen fish diversion screen panel
