Wire wrapped stainless steel wedge wire screen mesh

More Views

Wire wrapped stainless steel wedge wire screen meshWire wrapped stainless steel wedge wire screen meshWire wrapped stainless steel wedge wire screen mesh

Wire wrapped stainless steel wedge wire screen mesh

Category:Wedge Wire Pipe&Cylinder
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the Wire wrapped stainless steel wedge wire screen mesh

Wire wrapped stainless steel wedge wire screen meshs are made up of rods and wire. The rod can be round wire, triangular wire or trapezoid wire. The wire is triangular wire (V-shaped wire). Water well screens have a structure and high open area, as well as accurate slot dimension. At the same time, water well screens have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.

Wire wrapped stainless steel <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> mesh

Advantage of Wire wrapped stainless steel wedge wire screen mesh

High strength
High hardness
Abrasion resistant
Corrosion resistant
Uniform aperture
Good transfusion
Easy to clean

Application of Wire wrapped stainless steel wedge wire screen mesh

Widely used in mining, coal, petroleum, fertilizer, grain, salt, environmental protection and other industries. For sieving liquid, powder and other materials. In petroleum, chemical industry, metallurgy, mining, pharmaceutical purification and drilling liquid purification.

Wire wrapped stainless steel <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> mesh

Wire wrapped stainless steel <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> mesh

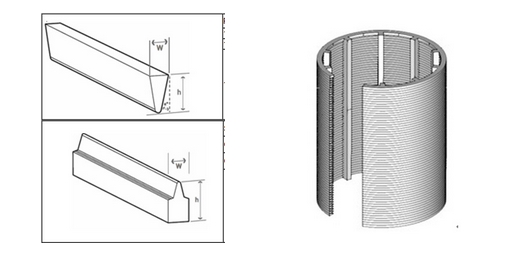

The specifications of the Wire wrapped stainless steel wedge wire screen mesh:

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

 up to 6 meters.

Diameter

 from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings



The Packaging and Transportation of the Wire wrapped stainless steel wedge wire screen mesh:

Wire wrapped stainless steel <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> mesh
