Wedge Wire Screen Pipe

More Views

Wedge Wire Screen PipeWedge Wire Screen PipeWedge Wire Screen Pipe

Wedge Wire Screen Pipe

Category:Wedge Wire Pipe & Cylinder
Material:Stainless Steel 304,304L,316,316L,321,430, etc.
Properties:wedge wire screen pipe
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the Wedge Wire Screen Pipe

Wedge Wire Screen Pipe is made of rods and warp. The rod can be round wire, triangular wire or trapezoid wire.

The warp is triangular wire (V-shaped wire). The welded ring sand control wedge wire screen pipe have a robust structure and large open area, as well as accurate slot dimension. At the same time, it has many advantages such as heat-resisting, anti-corrosive, good machine capability,long service life, safety and reliability and so on. It can be used in many kinds of medium filtering.

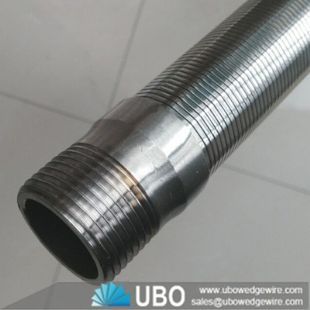

Stainless steel wedge wrapped wire screen pipe strainer for wasetwater treatment

Stainless steel wedge wrapped wire screen pipe strainer for wasetwater treatment

Usage of Wedge Wire Screen Pipe

Cylinders are used as rotary screens, collectors such as screen laterals and nozzles, resin traps, in-line strainers, water intake screens, well screens, as well as many other applications involving liquid / solids separation.

Features of Wedge Wire Screen Pipe

1. It has high mechanical strength, can bear large pressure drop.
2. The wedge type slot can improve backflushing and regeneration performance.
3. Resistance to pressure, temperature, aging, corrosion, uedes in kinds of fluid.
4. Equal slots for filtering, can form equally distributed filter cake, easy to clean for reuse.

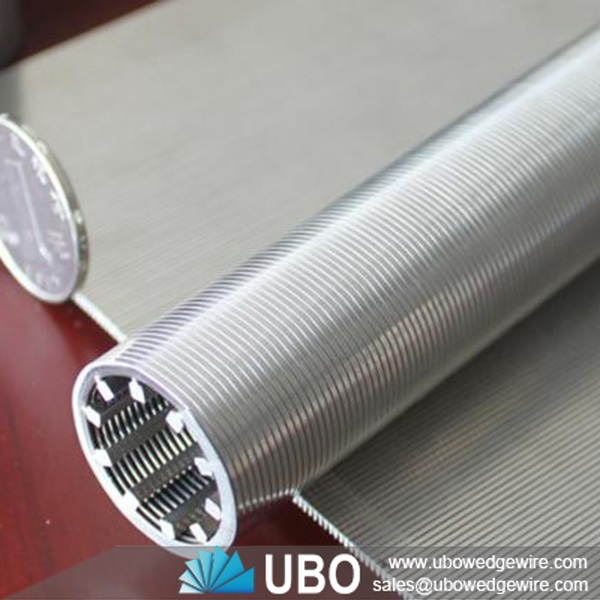

Stainless steel wedge wrapped wire screen pipe strainer for wasetwater treatment

Stainless steel wedge wrapped wire screen pipe strainer for wasetwater treatment

The specifications of the Wedge Wire Screen Pipe:

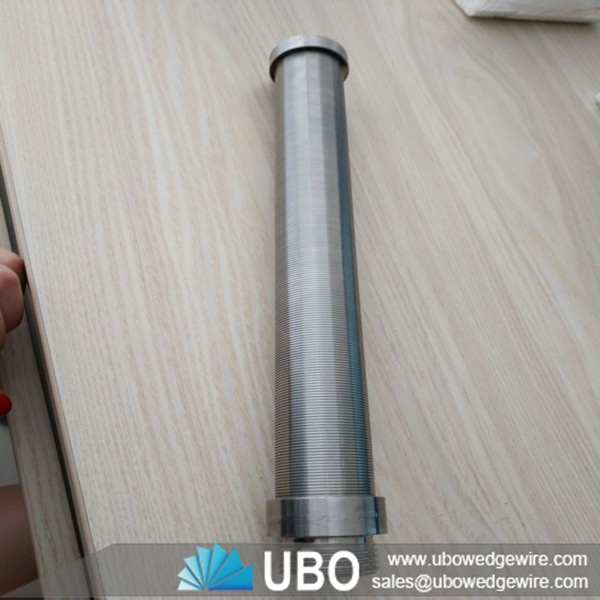

Stainless steel wedge wrapped wire screen pipe strainer for wasetwater treatment

Material

SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc

OD Range

19mm-2000mm

ID Range

13mm-1981mm

Length Range

Up to 6000 mm

Slot Range

20 micron to 3000 micron (Tolerance:+-5 micron)

Wedge Wire

0.5x1.5

0.75x1.5

1x2

1.5*2

2x3

2*4

3*5

Support Rod

1.5x2.5

2x3

1.5x2.5

2x3

1.5x2.5

2x3

1.8*2.5

2x3

2x3

2x4

3x5

3x6

3x10

4x7

2x4

3x5

3x6

3x10

4x7

5x6

3x5

3x6

3x10

4x7

5x6

5x8

End Finishing

Thread Fitting, Flange, Closed Plated, Resistance Welded Closed Plate, Metal Ring, etc

Note

Other sizes available on customer’s request
