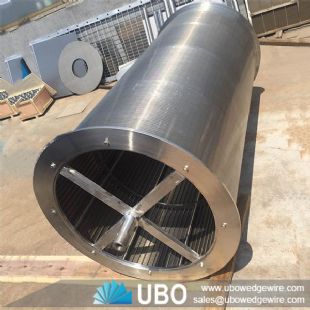

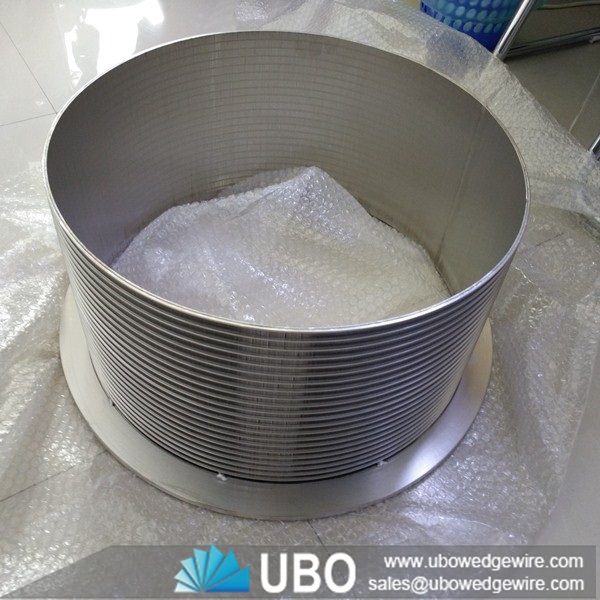

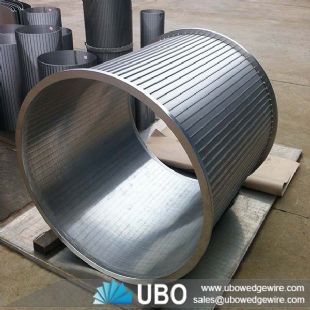

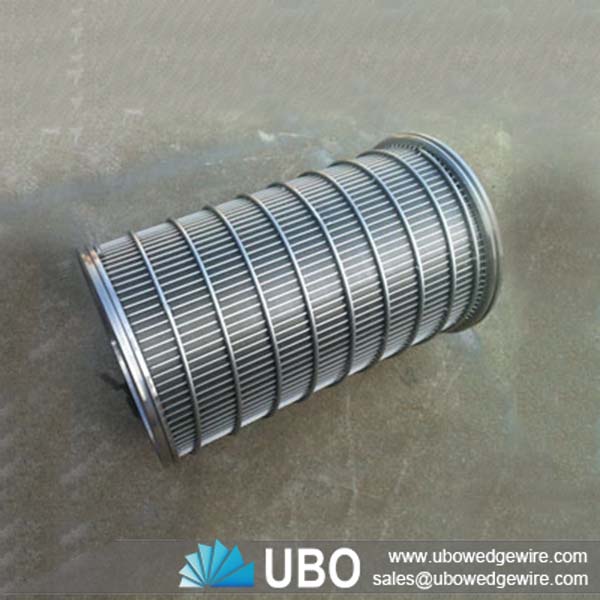

Wedge Wire Pressure Screen Basket Cylinder for Paper Pulp

More Views

Wedge Wire Pressure Screen Basket Cylinder for Paper PulpWedge Wire Pressure Screen Basket Cylinder for Paper PulpWedge Wire Pressure Screen Basket Cylinder for Paper Pulp

Wedge Wire Pressure Screen Basket Cylinder for Paper Pulp

Category:Wedge Wire Pipe&Cylinder
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:wedge wire screen cylinder
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant, refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the Wedge Wire Pressure Screen Basket Cylinder for Paper Pulp

The Wedge Wire Pressure Screen Basket Cylinder for Paper Pulp is composed of rod strips and V shaped wires through manufacturing on specialized welding machine.The rib strips and V shaped wires will be welded by resistance welding, has enough welding strength, equally slot gap, high corrosion resistance, large filter area, good permeability, simple structure.

Wedge Wire Pressure Screen Basket Cylinder can be manufactured in almost unlimited height and diameter with the wire running circumficial or long-slot rolled to the I.D. or the O.D. of the cylinder. These wedge wire cylinder screens can be manufactured for stationary/static processing or can be driven on trunions for a rotating effect on your materials.

Wedge Wire Pressure Screen Basket Cylinder for Paper Pulp

Application of Wedge Wire Pressure Screen Basket Cylinder for Paper Pulp

The stainless steel wedge wire screen cylinders can be used in crossing flow sieves, vibrating screen decking, mineral processing, surface water intake screens, fish diversion screen panels, hatchery screens, architectural decorative food processing.

Features of Wedge Wire Pressure Screen Basket Cylinder for Paper Pulp

• each filter constructed of 316 stainless steel and features a permanent handle for easy installation, removal and cleaning
• Manfre basket filter designed for maximum operating pressures of up to 150 psi (9.0 bar) and high flow rates
• cleanable permanent media
• optional ratings available down to 550 mesh (25 micron)
• Five standard ratings available from 20 to 100 mesh

Wedge Wire Pressure Screen Basket Cylinder for Paper Pulp

Wedge Wire Pressure Screen Basket Cylinder for Paper Pulp

Wedge Wire Pressure Screen Basket Cylinder for Paper Pulp

The specifications of the Wedge Wire Pressure Screen Basket Cylinder for Paper Pulp:

Wedge Wire Pressure Screen Basket Cylinder for Paper Pulp

Material

SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc

OD Range

According to request and the actual flange and strengthen bar

Normal ID

176mm, 200mm, 230mm, 255mm. According to request

Normal Length

600mm, 602mm, According to request

Normal Slot

0.21mm, 0.4mm, 0.41mm, 0.8mm. Customized 0.02-3mm.

Slot Direction

Radial Direction

Wedge Wire

0.75x1.5

1x2

2x3

2*4

3*5

Support Rod

1.5x2.5

2x3

1.5x2.5

2x3

2x3

2x4

3x5

3x6



2x4

3x5

3x6

5x6

3x5

3x6

5x6



End Finishing

Flange, , Metal Ring, etc

Note

Customized According To Requirement

The Packaging and Transportation of the Wedge Wire Pressure Screen Basket Cylinder for Paper Pulp:

Wedge Wire Pressure Screen Basket Cylinder for Paper Pulp
