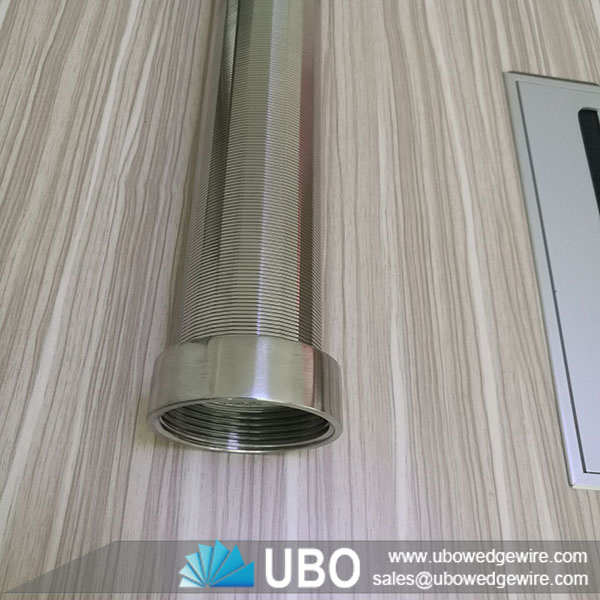

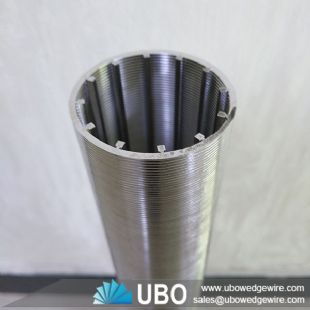

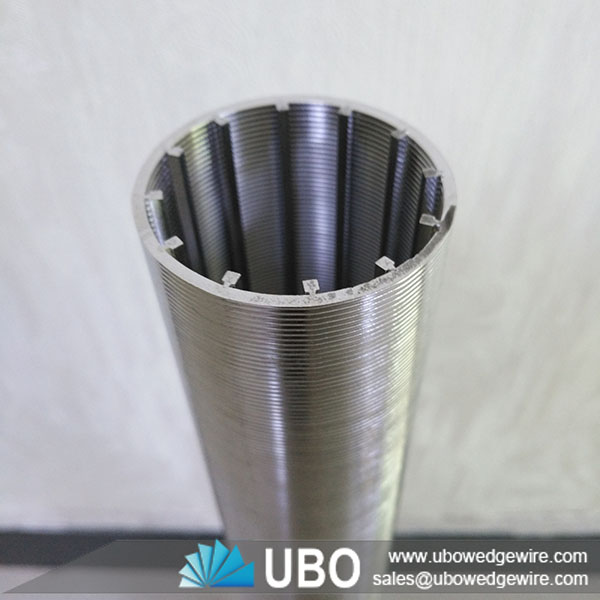

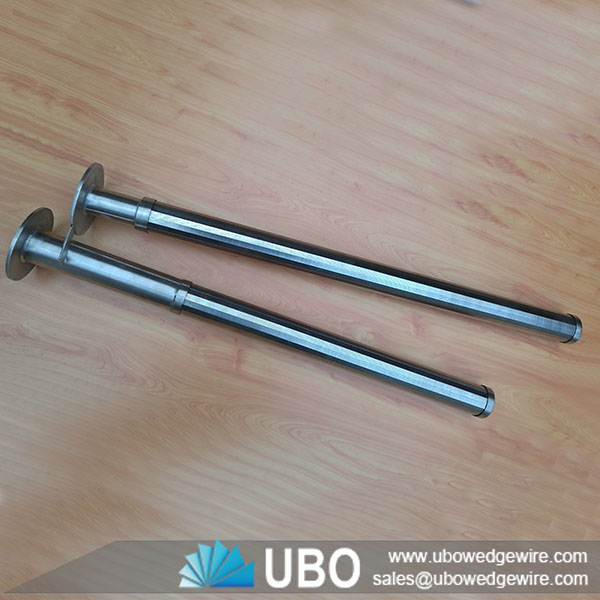

Water filter wedge wire screen tube used for industry

More Views

Water filter wedge wire screen tube used for industryWater filter wedge wire screen tube used for industryWater filter wedge wire screen tube used for industry

Water filter wedge wire screen tube used for industry

Category:Wedge Wire Pipe&Cylinder
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:wedge wire screen pipe
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the Water filter wedge wire screen tube used for industry

Water filter wedge wire screen tube is be made of Wedge wire or V-shape profile wire and the longitudinal support rods together forms a pipe filter for well screen. The V wire is welded to the rods and produces a rigid unit that has high strength and minimum weight. So wedge wire pipe well screen has sturdy constriction and good mechanical property. It is used to prevent sands from entering the water.

The V-shape section plane can avoid blockage and make sure of the unimpeded water. The consecutive slot have more open area, and it can reduce the speed of the water entering to avoid the sand entering the Water Well Screens under the great pressure, so it can filter sand better. Meanwhile, the slot of Water Well Screens can change according to the real condition of the earth.

Water filter <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> tube used for industry

Water filter <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> tube used for industry

Application of Water filter wedge wire screen tube used for industry

The continuous-slot well screen strainer is recommended in the following situations:
Formation comprised of small or fine particles
Water wells where gravel packs will be installed
Thin aquifers, where maximum open area is required
Small diameter wells

Advantage of Water filter wedge wire screen tube used for industry

1. A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone
2. Uninterrupted flow.
3. A uniform and efficient well development due to the continuous slot opening.
4. Good strength, no further support structure needed.

Water filter <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> tube used for industry

Water filter <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> tube used for industry



Water filter <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> tube used for industry

The specifications of the Water filter wedge wire screen tube used for industry:

Water filter <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> tube used for industry

Wire Size

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30

Support Rods

Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30

Note: other wires and rods available upon request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

Low carton, low carton galvanized steel (LCG), stainless steel (304,316 etc.)

Length

Lengths up to 6 meters.

Diameter

ranging from 25mm to 800mm.

End connection

Plain beveled ends for butt welding or threaded

The Packaging and Transportation of the Water filter wedge wire screen tube used for industry:

Water filter <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> tube used for industry
