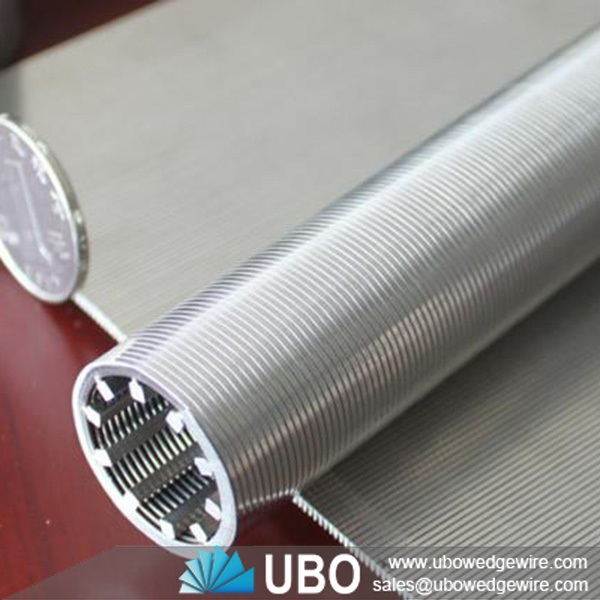

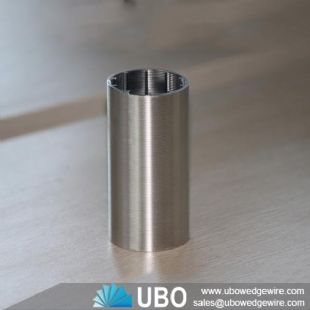

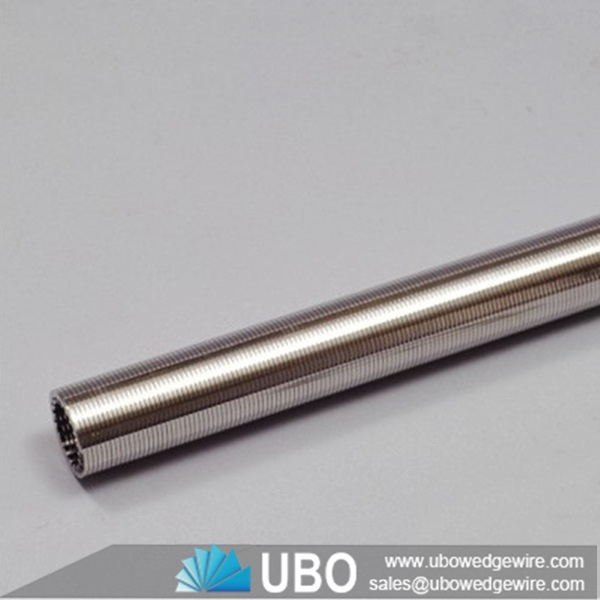

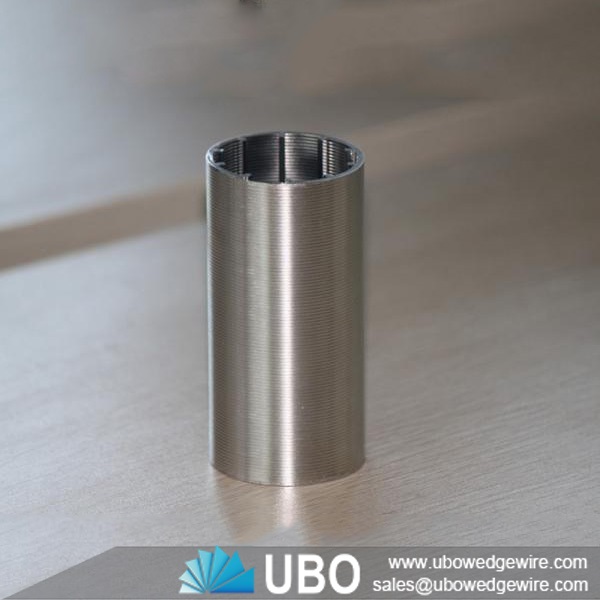

Stainless Steel Water Slot Screens Pipe

More Views

Stainless Steel Water Slot Screens PipeStainless Steel Water Slot Screens PipeStainless Steel Water Slot Screens Pipe

Stainless Steel Water Slot Screens Pipe

Category:Wedge Wire Pipe&Cylinder
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the Stainless Steel Water Slot Screens Pipe

Stainless Steel Water Slot Screens Pipe is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire.
The warp is triangular wire (V-shaped wire). The welded ring sand control wedge wire screen pipe have a robust structure and large open area, as well as accurate slot dimension. At the same time, wedge wire screens pipe have many advantages such as heat-resisting, anti-corrosive, good machine capability,long service life, safety and reliability and so on. It can be used in many kinds of medium filtering.

Stainless Steel Water Slot Screens Pipe

Application of Stainless Steel Water Slot Screens Pipe

wedge wire type hub and header lateral consist of a series of screen laterals connected to either a central-header pipe or a hub, they are important components of ion exchange units, media filters, sand filters, carbon strip vessels, carbon towers, clay filters and in many water and waster water treatment applications.

Features of Stainless Steel Water Slot Screens Pipe

1. Screens with high open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.
2. Low cost operation.
3. Reduce the abrasion of the pump.

Stainless Steel Water Slot Screens Pipe

The specifications of the Stainless Steel Water Slot Screens Pipe:

Stainless Steel Water Slot Screens Pipe

wedge wire

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

support rod

Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters

Diameter

  from 25mm to 1200mm.

The Packaging and Transportation of the Stainless Steel Water Slot Screens Pipe:

Stainless Steel Water Slot Screens Pipe
