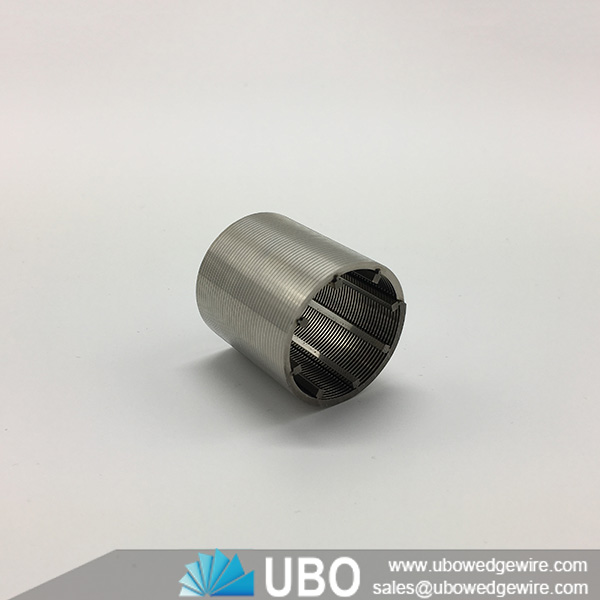

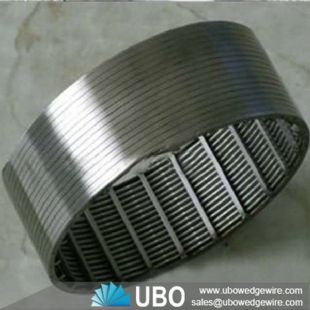

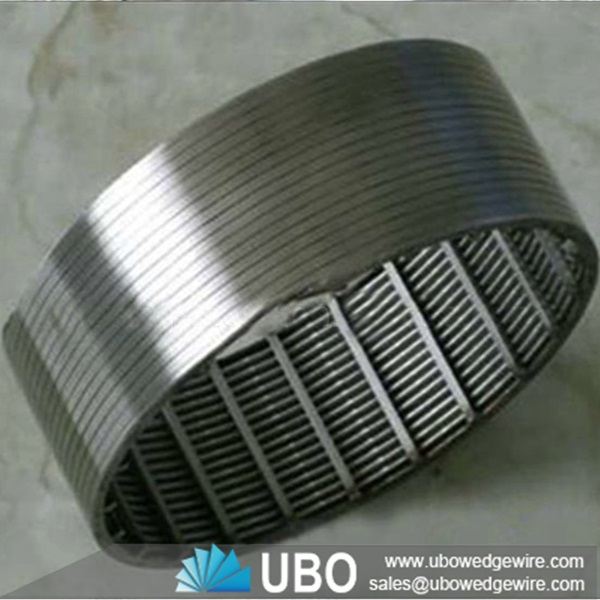

Stainless Steel Slot V Wire Water Well Screen tube

More Views

Stainless Steel Slot V Wire Water Well Screen tubeStainless Steel Slot V Wire Water Well Screen tubeStainless Steel Slot V Wire Water Well Screen tube

Stainless Steel Slot V Wire Water Well Screen tube

Category:Wedge Wire Pipe&Cylinder
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Wedge Wire Pipe
Application:filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the Stainless Steel Slot V Wire Water Well Screen tube

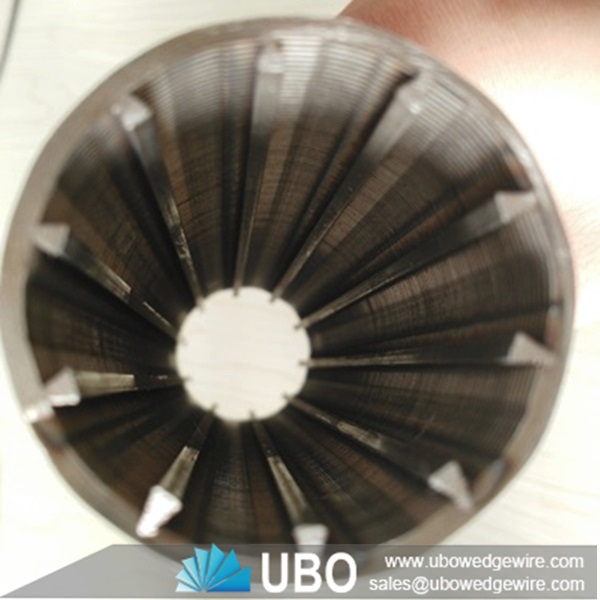

     Stainless steel cylindrical wedge wire screens, also called round slot tube. It is made of stainless steel wire, which is the most popular type because of outstanding chemical stability and corrosion resistance. The stainless steel cylindrical wedge wire screensis composed of working profile and support profile. It is produced on an automotive machine. The support profiles is placed on the suit position of the machine, during the surface profiles are spirally wounding, the support profiles are welded onto the surface profiles.

     Application for Stainless Steel Slot V Wire Water Well Screen tube:

Widely used in mining, coal, petroleum, fertilizer, grain, salt, environmental protection and other industries. For sieving liquid, powder and other materials. In petroleum, chemical industry, metallurgy, mining, pharmaceutical purification and drilling liquid purification.

Advantages for Stainless Steel Slot V Wire Water Well Screen tube:

A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone.•A “V”shaped profile wire which avoids clogging and ensures an uninterrupted flow.
A uniform and efficient well development due to the continuous slot opening.
Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.
5.Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.

Stainless Steel Slot V Wire Water Well Screen tube

The specifications of the Stainless Steel Slot V Wire Water Well Screen tube:

Stainless Steel Slot V Wire Water Well Screen tube





Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70  Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70  Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

The Packaging and Transportation of the Stainless Steel Slot V Wire Water Well Screen tube:

Stainless Steel Slot V Wire Water Well Screen tube
