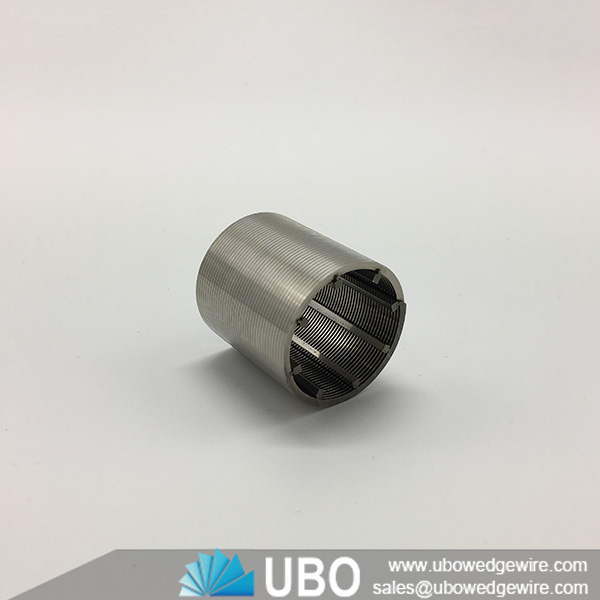

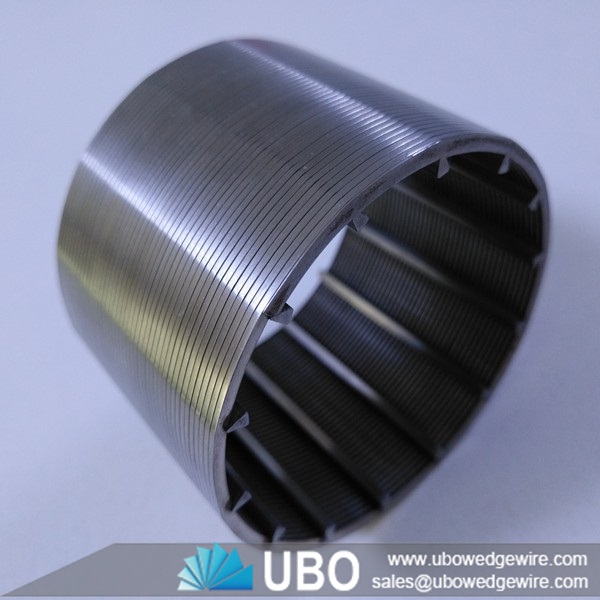

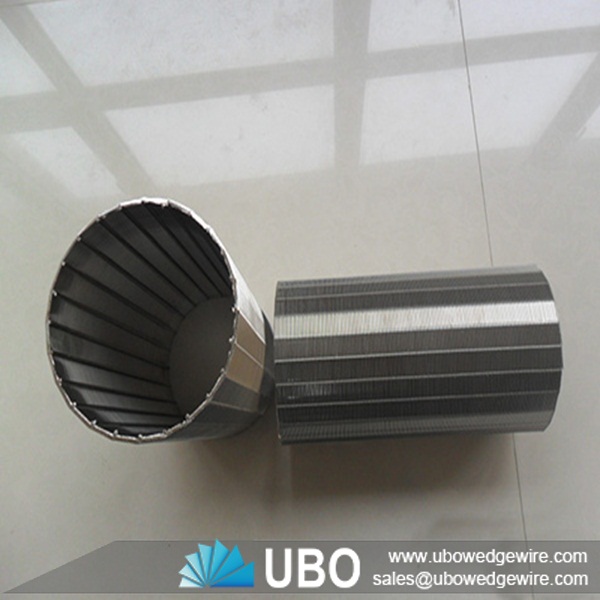

SS continuous wire wrap screen tube

More Views

SS continuous wire wrap screen tubeSS continuous wire wrap screen tubeSS continuous wire wrap screen tube

SS continuous wire wrap screen tube

Category:Wedge Wire Pipe&Cylinder
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen pipe
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the SS continuous wire wrap screen tube

The advanced SS continuous wire wrap screen tube technology provides superior weld strength and accurate slot openings. The accurate V-shaped wires provide free flow and optimal sand control.
A large number of support rods increases tensile strength and achieves rounder and stronger screens.
The screen jacket is fully pickled and passivated for maximum corrosion resistance.

SS continuous wire wrap screen tube

Application of SS continuous wire wrap screen tube

Used in industries such as Sugar, Coal Mining & Quarrying, Mineral Processing, Cement, and Industrial & Urban Effluent Treatment etc.
Used as a pre-filter in urban & industrial waste treatment plants to improve the performance of the clarifier by dramatically reducing the load.
Used for fiber removal in Starch industry.

Advantages of SS continuous wire wrap screen tube

The Wedge Wire Screen is composed of rod strips and V shaped wires through manufacturing on specialized welding machine. The rib strips and V shaped wires will be welded by resistance welding, has enough welding strength, equally slot gap, high corrosion resistance, large filter area, good permeability, simple structure

Product Characteristics of SS continuous wire wrap screen tube

1. It has high mechanical strength, can bear large pressure drop.
2. It has equal slots for filtering, can form equally distributed filter cake, easy to clean for reuse.
3. The wedge type slot can improve backflushing and regeneration performance.
4. It has resistance to pressure, temperature, aging, corrosion, can be applied for different kinds of fluid.

SS continuous wire wrap screen tube

The specifications of the SS continuous wire wrap screen tube:

SS continuous wire wrap screen tube



Size
(inch)
O.D
(mm)
Slot
(inch)
Collapse Strength
(Psi)
Tensile Weight
(Ton)
Wrap(thick*deep)
(mm)
Rods
(mm)
4
117
0.04
395
6
2.2*3.0
3.8mm/22
4
114.3
0.04
395
6
2.3*3.0
3.8mm/22
6
168.3
0.04
252
8
2.3*3.5
3.8mm/32
8
219.1
0.01
399
10.5
3.0*5.0
3.8mm/48
8
219.1
0.02
370
10.5
3.0*5.0
3.8mm/48
8
219.1
0.04
323
10.5
3.0*5.0
3.8mm/48
10
273.1
0.01
206
11
3.0*5.0
3.8mm/50
10
273.1
0.02
191
11
3.0*5.0
3.8mm/50
10
273.1
0.04
167
11
3.0*5.0
3.8mm/50

The Packaging and Transportation of the SS continuous wire wrap screen tube:

SS continuous wire wrap screen tube

transportation
