Johnson wedge vee wire screen water well screen pipe

More Views

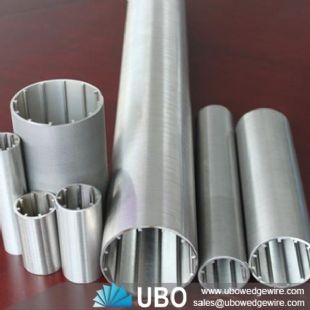

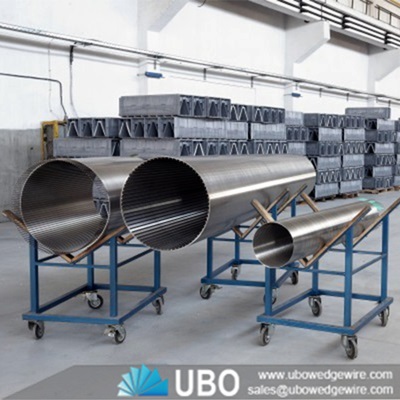

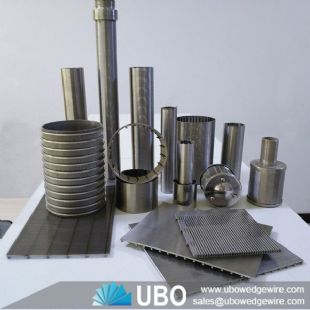

Johnson wedge vee wire screen water well screen pipeJohnson wedge vee wire screen water well screen pipeJohnson wedge vee wire screen water well screen pipe

Johnson wedge vee wire screen water well screen pipe

Category:Wedge Wire Pipe&Cylinder
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen pipe
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the Johnson wedge vee wire screen water well screen pipe

Johnson wedge vee wire screen water well screen pipes are welded structures with the support profiles being rods in the axial direction of the tube and surface profiles spirally wound around the support profiles.

Johnson wedge vee wire screen water well screen pipes are manufactured directly on a machine. They have the unique advantage of very accurate, narrow slot openings and perfect roundness all in one. Slot tubes can be provided with the necessary end pieces for attachments and/or reinforcements.

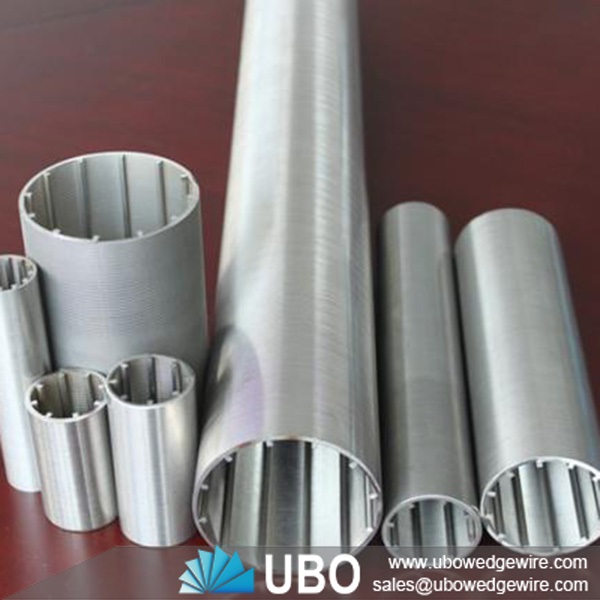

Johnson wedge vee wire screen water well screen pipe

Johnson wedge vee wire screen water well screen pipe

Characteristics of Johnson wedge vee wire screen water well screen pipe

The welded stainless steel water well screen is made up of rods and warp.
The rod can be round wire, triangular wire or trapezoid wire.
The warp is triangular wire (V-shaped wire).
Water well screens have a structure and high open area, as well as accurate slot dimension.

At the same time, water well screen have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.

Advantage of Johnson wedge vee wire screen water well screen pipe

1 A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone.
2 A "V"shaped profile wire which avoids clogging and ensures an uninterrupted flow.
3 A uniform and efficient well development due to the continuous slot opening.
4 Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.
5 Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.

Johnson wedge vee wire screen water well screen pipe

Johnson wedge vee wire screen water well screen pipe

The specifications of the Johnson wedge vee wire screen water well screen pipe:

Johnson wedge vee wire screen water well screen pipe

Surface Profiles Support Profiles Min. diam. in mm Min. slot width in mm
10S Q25 21 0.10
11S Q20 or Q25 23 0.030
12S 22S 30 0.050
12S Q25 23 0.030
12S Q35 30 0.050
18S 22S or Q35  30 0.050
18S Q25 25 0.030
18S D45 300 0.20
18S 10x3 300 0.20
22S 22S or Q35 45 0.10
22S D45 or 10x3 or 25x3 300 0.20
28S Q35 215 0.20
28S D45 or 10x3 or 25x3 300 0.20
34S Q35 300 0.20
34S D45 300 0.20
34S 10x3 or 25x3 300 0.20
42S Q35 or D45 300 0.20
42S 10x3 or 25x3 300 0.20

Diameters

Outside diameter in mm Number of support profiles
30 8
45 10
57 12
70 18
85 18
97 20
110 24
137 30
164 36
215 48
268 48
305 40
380 48
460 60
510 64
625 80
914 180

Standard tolerances (tighter tolerances are possible on request through the use of special techniques)

Slot Size: ± 0.030 mm
(max. ± 0.030)
± 0.1 mm
(max. ± 0.2)
for O.D. ≤ 300 mm

for O.D. > 300 mm
Diameter ± 0.3 mm
± 0.5 mm
± 2.5 mm
Ø < 164 mm
164 < Ø < 300 mm
Ø > 300 mm
Length ± 2 mm
± 4 mm
Ø ≤ 300 mm
Ø > 300 mm

The Packaging and Transportation of the Johnson wedge vee wire screen water well screen pipe:

Johnson wedge vee wire screen water well screen pipe

Johnson wedge vee wire screen water well screen pipe
