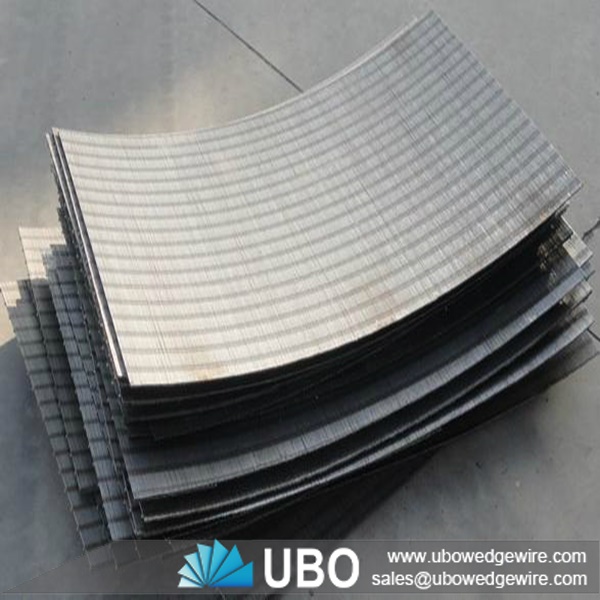

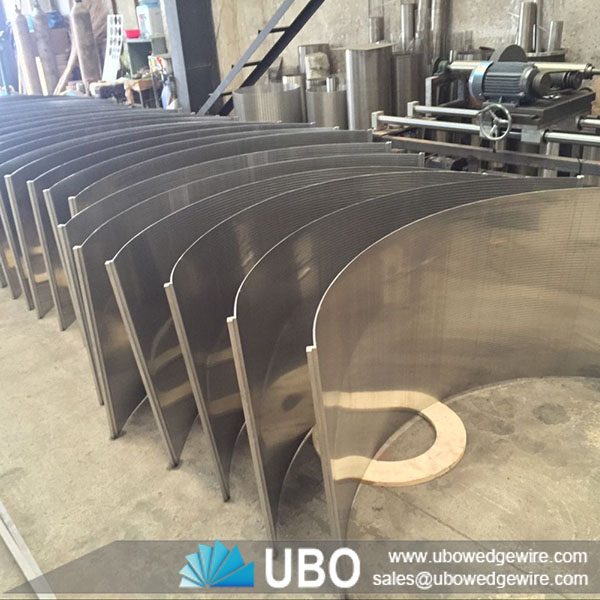

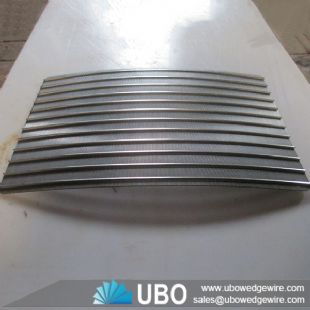

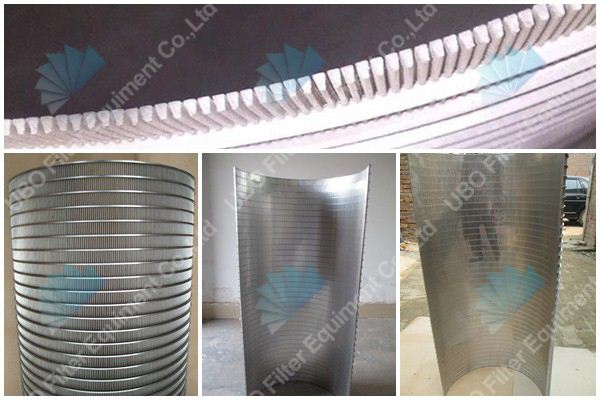

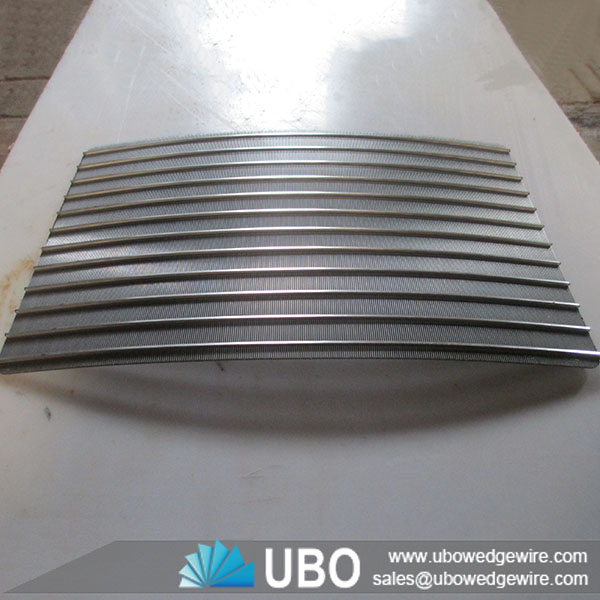

Wedge wire sieve bend arc screen plate
Category: | Sieve Bend Screen |
---|---|
Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request. |
Properties: | sieve bend screen |
Application: | water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of Wedge wire sieve bend arc screen plate
Wedge wire sieve bend arc screen plate also known as side hill screens, parabolic screens, run down screens, gravity screens and DSM screens, can be custom designed to separate solids from liquids in various applications including food processing, pulp and paper, waste water cleanup, surface water intakes, corn wet milling, coal preparation, and gold recovery.
Feature of Wedge wire sieve bend arc screen plate
• Sharp cutting action
• Maximum open area and drainage
• Wide range of profiles available
• Abrasion resistant 304 stainless steel
and corrosion resistant 316 stainless
steel standard supply
Application of Wedge wire sieve bend arc screen plate
applications such as:
Civil Aggregate
CIL Process
Dewatering
Trash
Scalping
Sizing
Classification
Waste water
Food processing
Specifications of Wedge wire sieve bend arc screen plate:
Material | SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc | ||||||
Length Range | Up to 6000mm | ||||||
Width Range | Up to 6000mm | ||||||
Slot Range | 20 micron to 3000 micron (Tolerance:+-5 micron) | ||||||
Wedge Wire | 0.5x1.5 | 0.75x1.5 | 1x2 | 1.5x2.5 | 2x3 | 2x4 | 3x5 |
Support Rod |
1.5x2.5 2x3 |
1.5x2.5 2x3 |
1.5*2.5 2x3 |
2x3 | 3*5 | 3x5 |
3x5 4*6 5*8 |
Angle | 90°,120°,140°,150°,160° etc. | ||||||
Arc height | 10mm,15mm,20mm,50mm or depend on you size of screen panel. | ||||||
Frame | No frame or ” L” type frame, ordinary frame, 5*10mm frame etc, according to your request. | ||||||
Note | Customized according to requirement |
