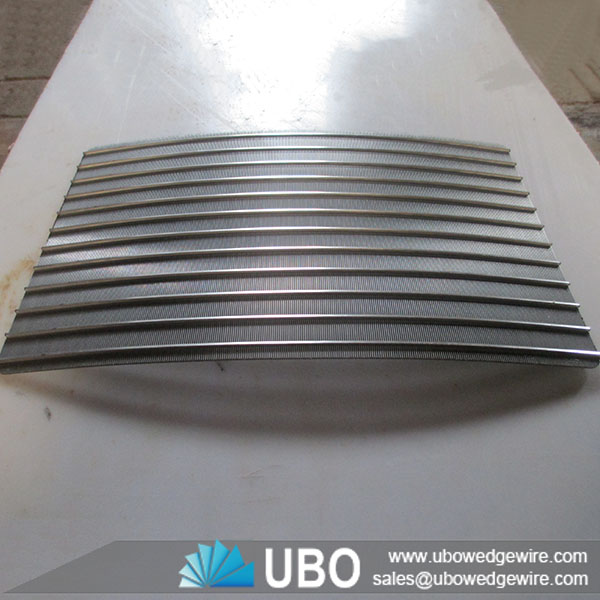

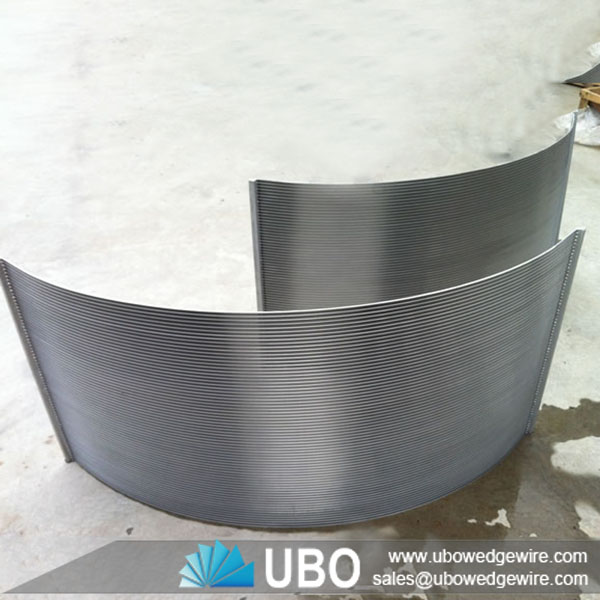

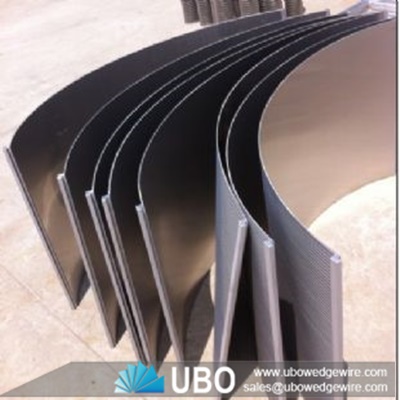

Wedge wire arch sieve bend screen for waste water equipment

More Views

Wedge wire arch sieve bend screen for waste water equipmentWedge wire arch sieve bend screen for waste water equipmentWedge wire arch sieve bend screen for waste water equipment

Wedge wire arch sieve bend screen for waste water equipment

Category:Sieve Bend Screen
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:sieve bend screen
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant, refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge wire arch sieve bend screen for waste water equipment

The dewatering capacity of a Wedge wire arch sieve bend screen is primarily influenced by the screen width, the slot opening, and the wire size (width). The chart below shows typical dewatering capacities in US gallons per minute (GPM) per foot of screen width. Actual capacity varies depending on the feed content and desired efficiency.

Screening efficiency and solids capacity are directly related to the length (arc length). Longer arc lengths should be considered for feed containing a high percentage of solids.

The dewatering capacity of Wedge wire arch sieve bend screen such as the sieve bend can be greatly increased by tilting the wedge wires. The wedge wires are tilted 2 to 7 degrees depending on the wire size and slot opening.

Wedge wire arch sieve bend screen for waste water equipment

Feature of Wedge wire arch sieve bend screen for waste water equipment

A continuous slot opening which significantly increases the available open area, thus providing a greater access to the water bearing zone.
A 'V' shaped wedge wire which avoids clogging and ensures uninterrupted flow.
A uniform and efficient well development due to the continuous slot opening.
Offering great strength. precision, long service life.

Application of Wedge wire arch sieve bend screen for waste water equipment

Wedge wire arch sieve bend screens are manufactured to suit a wide range of industries such as Sugar, Coal Mining & Quarrying, Mineral Processing, Cement, and Industrial & Urban Effluent Treatment etc. Wedge wire arch sieve bend screen are also used as a pre-filter in urban & industrial waste treatment plants to improve the performance of the clarifier by drastically reducing the load. Widely used for fiber removal in Starch industry.

Wedge wire arch sieve bend screen for waste water equipment

Wedge wire arch sieve bend screen for waste water equipment

Wedge wire arch sieve bend screen for waste water equipment

Specifications of Wedge wire arch sieve bend screen for waste water equipment:

Wedge wire arch sieve bend screen for waste water equipment

Material

SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc

Length Range

Up to 6000mm

Width Range

Up to 6000mm

Slot Range

20 micron to 3000 micron (Tolerance:+-5 micron)

Wedge Wire

0.5x1.5

0.75x1.5

1x2

1.5x2.5

2x3

2x4

3x5

Support Rod

1.5x2.5

2x3

1.5x2.5

2x3

1.5*2.5

2x3

2x3

3*5

3x5

3x5

4*6

5*8

Angle

90°,120°,140°,150°,160° etc.

Arc height

10mm,15mm,20mm,50mm or depend on you size of screen panel.

Frame

No frame or ” L” type frame, ordinary frame, 5*10mm frame etc, according to your request.

Note

Customized according to requirement

Packaging and Transportation of Wedge wire arch sieve bend screen for waste water equipment:

Transportation of Wedge wire arch sieve bend screen for waste water equipment
