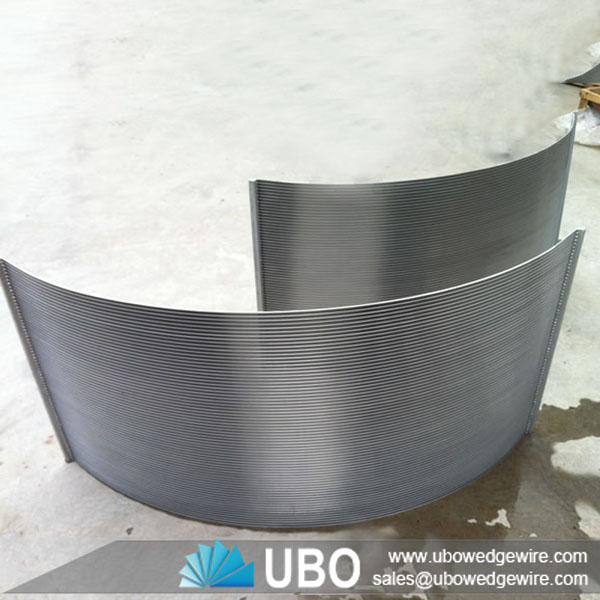

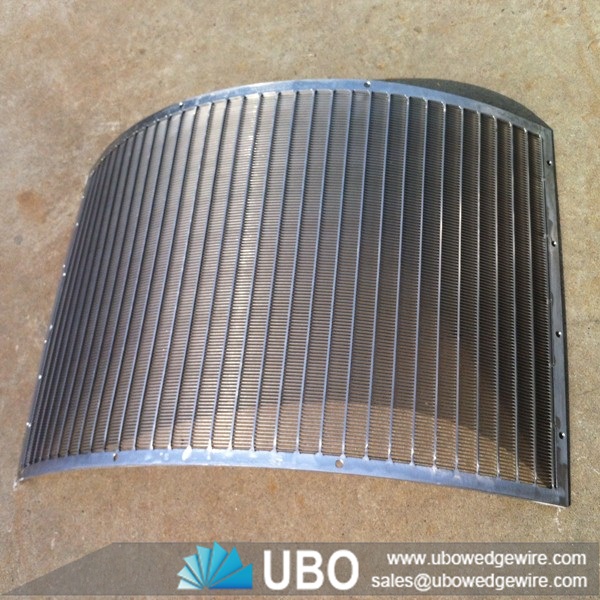

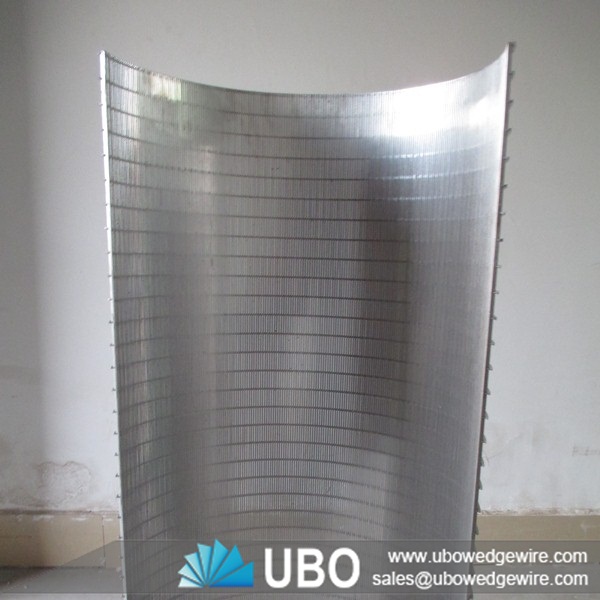

SS wedge wire arc curved screen plate

More Views

SS wedge wire arc curved screen plateSS wedge wire arc curved screen plateSS wedge wire arc curved screen plate

SS wedge wire arc curved screen plate

Category:Sieve Bend Screen
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:sieve bend screen
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant, refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the SS wedge wire arc curved screen plate

SS wedge wire arc curved screen plate is called johnson wedge wire hillside screen ,sieve bend screen and DSM screen etc ,are widely used in various industries, especially suitable for low maintenance applications as sieves and filters. It’s a new type filter component fabricated from the Fine Mesh Slot Opening Stainless Steel Wedge Wire filtration products.

The sieve bend screen plate can be re-used repeatedly. The precise filter ratings are from 20 micrion. Besides of this flat one, SLOT-CHINA screen filter are also available in the form of tubes, panels, filter cylinders and bags and special filter elements. It is made by welding with profile wire on every connection spots.

SS wedge wire arc curved screen plate

SS wedge wire arc curved screen plate

Feature of SS wedge wire arc curved screen plate

Wedge Wire Dsm Sieve Bend Screen For Water and Effluent Treatment is easy to penetrate, having good wear-resisting and corrosion resistance. With Trapezoidal cross-section, even gap, stable welding quality, large opening area, long life time, high strength and high load capacity, it can be made into various shapes. The dimensions, wire diameter, slot and frame structure can be customized.

Application of SS wedge wire arc curved screen plate

Sieve Bend Screens are also referred to as DSM Screens. These screens are mainly used for liquid / solid separation and manufactured to suit a wide range of industries such as:

Sugar Processing.
Pulp & Paper.
Coal Mining & Quarrying.
Mineral Processing.
Cement.
Industrial & Urban Effluent Treatment.

SS wedge wire arc curved screen plate

SS wedge wire arc curved screen plate

SS wedge wire arc curved screen plate

The specifications of the SS wedge wire arc curved screen plate:



SS wedge wire arc curved screen plate

Item

Technical

Specification

1

Sieve

Width(mm)

605

800

1000

1200

1500

1800

2000

2

Sieve Length(mm)

800

800

800

800

800

800

800

3

Sieve angle(mm)

50°

50°

50°

50°

50°

50°

50°

4

Flow rate(m3/h)

15-25

45-85

55-110

65-130

80-160

100-180

120-220

The Packaging and Transportation of the SS wedge wire arc curved screen plate:

SS wedge wire arc curved screen plate
