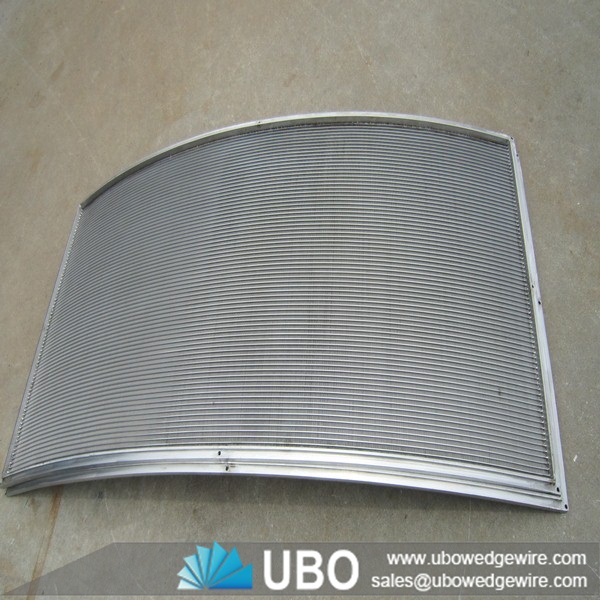

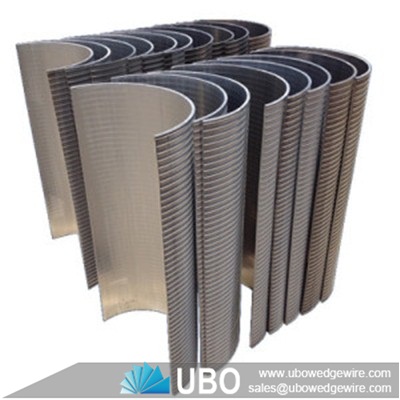

SS sieve bends wedge wire static screens

More Views

SS sieve bends wedge wire static screensSS sieve bends wedge wire static screensSS sieve bends wedge wire static screens

SS sieve bends wedge wire static screens

Category:Sieve Bend Screen
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:sieve bend screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the SS sieve bends wedge wire static screens

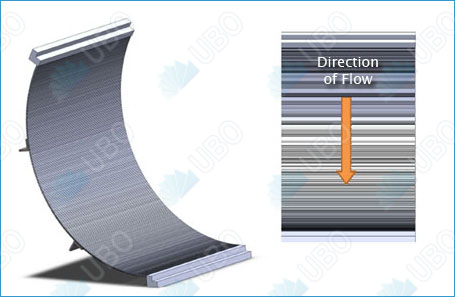

SS sieve bends wedge wire static screens consist of a concave curved profile wire screen mounted in a frame with the screen openings perpendicular to the flow, also referred to as DSM Screens. Wedge wire is well suited for high capacity filtration, which a curved screen has greater capacity than a flat screen due to forces exerted as material flows against the curved surface.

The way these screens work is by the unwanted material flowing over the inclined screen surface. A layer of unwanted material builds up and slides down into a bin or waste basket. Sieve bend screens are mainly used in dewatering, applications that require liquid / solid separation. Some of these industries include coal mining & quarrying, sugar & mineral processing, pulp & paper, cement manufacturing, fruit and vegetable wastewater processing etc.

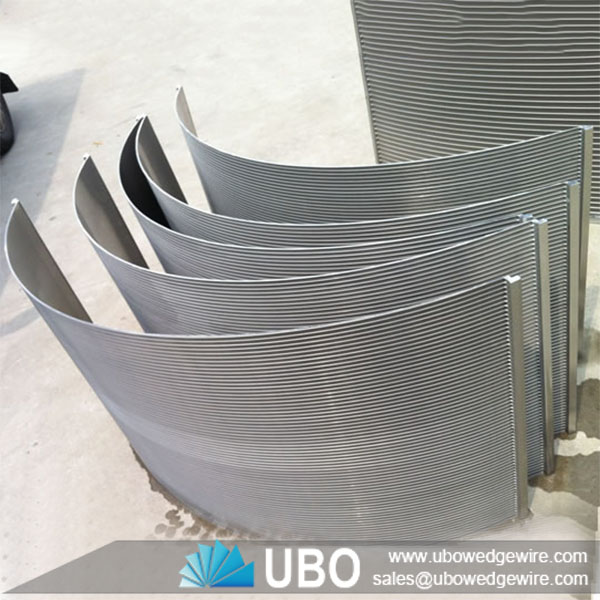

details of SS sieve bends wedge wire static screens

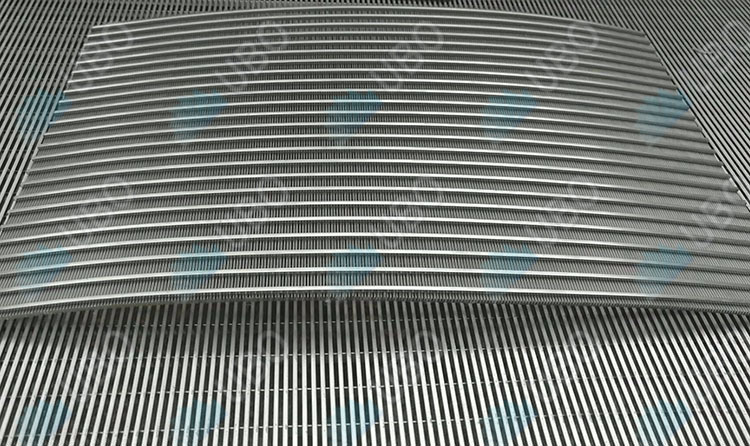

SS sieve bends wedge wire static screens

Application of  SS sieve bends wedge wire static screens

UBO's sieve bend range has been specifically designed to separate fine solids from slurry for many varied applications such as civil aggregate industries, minerals, agriculture, food processing, wood chip and waste water.

Feature of SS sieve bends wedge wire static screens

• Sharp cutting action
• Maximum open area and drainage
• Wide range of profiles available
• Abrasion resistant 304 stainless steel
and corrosion resistant 316 stainless
steel standard supply



SS sieve bends wedge wire static screens

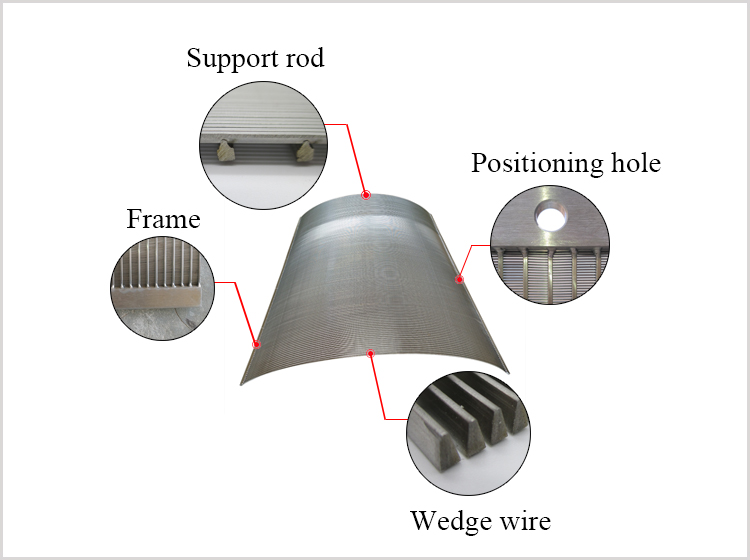

Structure of SS sieve bends wedge wire static screens

The specifications of the SS sieve bends wedge wire static screens:

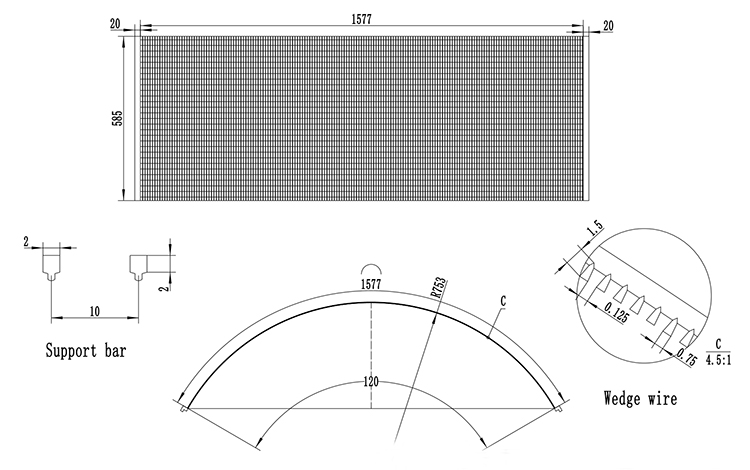

Drawing of SS sieve bends wedge wire static screens

Item

Technical

Specification

1

Sieve

Width(mm)

605

800

1000

1200

1500

1800

2000

2

Sieve Length(mm)

800

800

800

800

800

800

800

3

Sieve angle(mm)

50°

50°

50°

50°

50°

50°

50°

4

Flow rate(m3/h)

15-25

45-85

55-110

65-130

80-160

100-180

120-220

The Packaging and Transportation of the SS sieve bends wedge wire static screens:

Transportation of SS sieve bends wedge wire static screens
