SS parabolic screen side hill screen panel for mineral processing

More Views

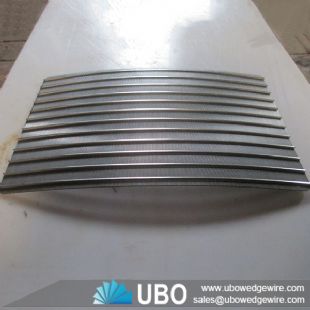

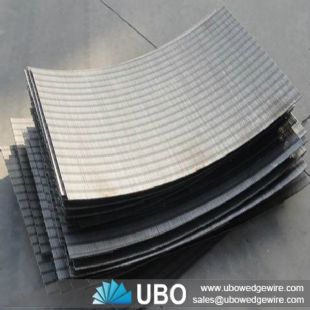

SS parabolic screen side hill screen panel for mineral processingSS parabolic screen side hill screen panel for mineral processingSS parabolic screen side hill screen panel for mineral processing

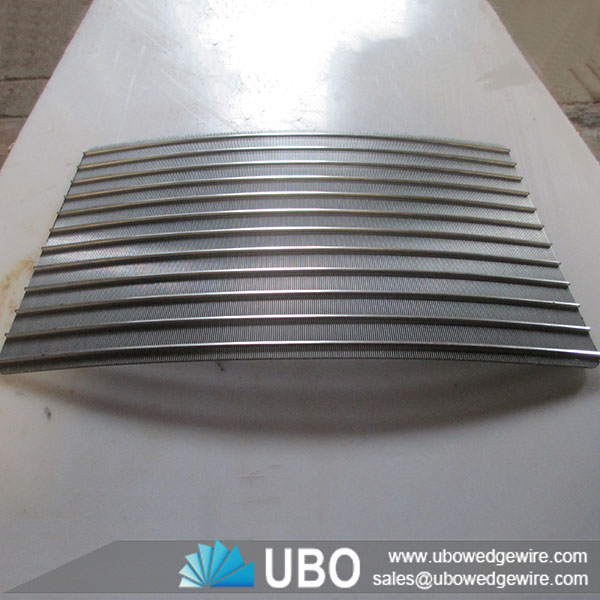

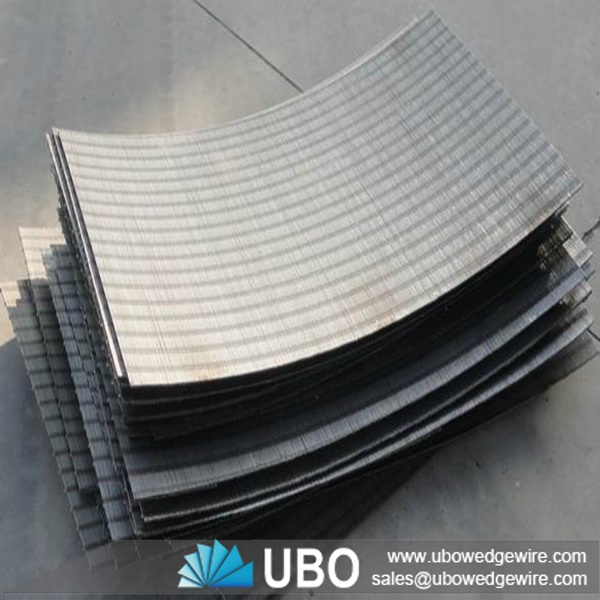

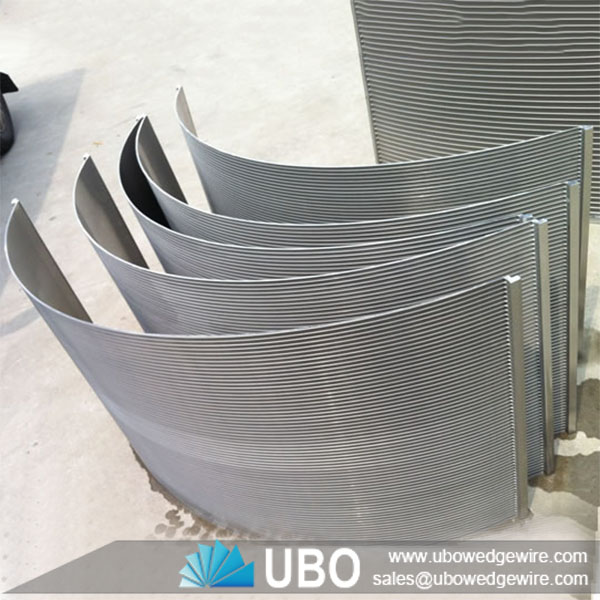

SS parabolic screen side hill screen panel for mineral processing

Category:Sieve Bend Screen
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:sieve bend screen
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant, refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the SS parabolic screen side hill screen panel for mineral processing

SS parabolic screen side hill screen panel have another name as DSM sreens,a sieve bend consists of a concave curved profile wire screen mounted in a frame with the screen openings perpendicular to the flow. A SS parabolic screen side hill screen panel has greater capacity than a flat screen due to forces exerted as material flows against the curved surface.
The dewatering capacity of a wedge wire cross flow sieve bend screen is primarily influenced
by the screen width, the slot opening, and the wire size (width).
Screening efficiency and solids capacity are directly related to the length (arc length). Longer
arc lengths should be considered for feed containing a high percentage of solids.

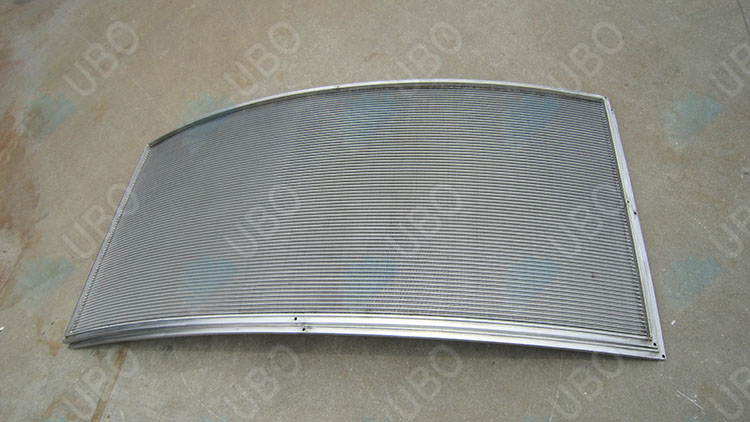

SS parabolic screen side hill screen panel for mineral processing

SS parabolic screen side hill screen panel for mineral processing

SS parabolic screen side hill screen panel for mineral processing

Application of SS parabolic screen side hill screen panel for mineral processing

applications such as:
Civil Aggregate
CIL Process
Dewatering
Trash
Scalping
Sizing
Classification
Waste water
Food processing

Features and Benefits of SS parabolic screen side hill screen panel for mineral processing

• Energy efficient operation with no moving parts and no energy input
• Quiet operation with no mechanical or electrical vibrations
• Can be used for sizing solid particles down to 0.2mm (0.008)
• Profile wire screen resists clogging by near-size particles
• Stainless steel construction ensures a long, corrosion-free installation
• Customised design and sizing to your specific applications

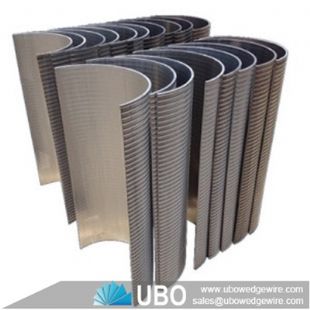

SS parabolic screen side hill screen panel for mineral processing

SS parabolic screen side hill screen panel for mineral processing

The specifications of the SS parabolic screen side hill screen panel for mineral processing:

SS parabolic screen side hill screen panel for mineral processing

Material

SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc

Length Range

Up to 6000mm

Width Range

Up to 6000mm

Slot Range

20 micron to 3000 micron (Tolerance:+-5 micron)

Wedge Wire

0.5x1.5

0.75x1.5

1x2

1.5x2.5

2x3

2x4

3x5

Support Rod

1.5x2.5

2x3

1.5x2.5

2x3

1.5*2.5

2x3

2x3

3*5

3x5

3x5

4*6

5*8

Angle

90°,120°,140°,150°,160° etc.

Arc height

10mm,15mm,20mm,50mm or depend on you size of screen panel.

Frame

No frame or ” L” type frame, ordinary frame, 5*10mm frame etc, according to your request.

Note

Customized according to requirement

The Packaging and Transportation of the SS parabolic screen side hill screen panel for mineral processing:

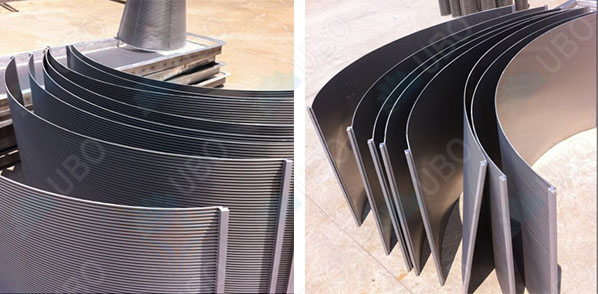

SS parabolic screen side hill screen panel for mineral processing
