Looped wire sieve bend screen panel for food processing

More Views

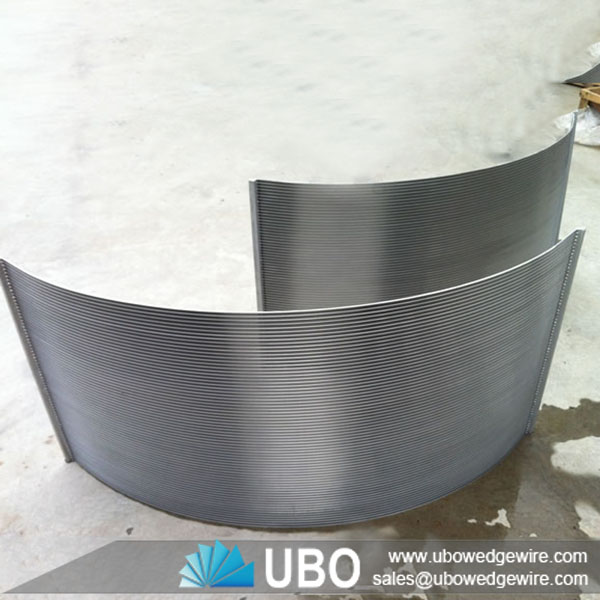

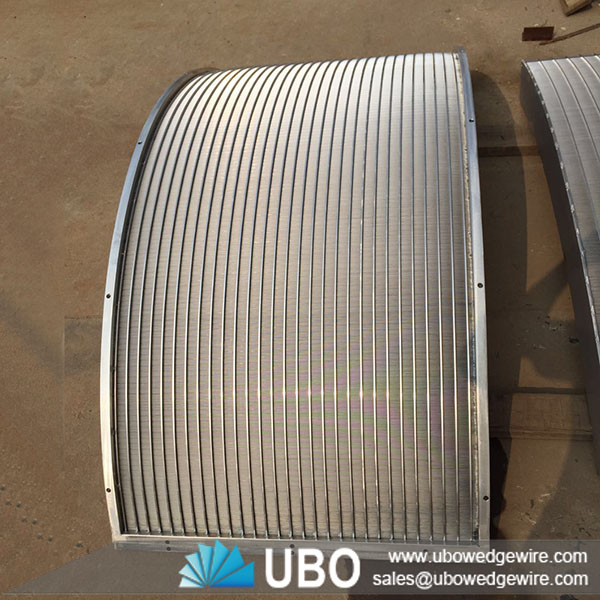

Looped wire sieve bend screen panel for food processingLooped wire sieve bend screen panel for food processingLooped wire sieve bend screen panel for food processing

Looped wire sieve bend screen panel for food processing

Category:Sieve Bend Screen
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:sieve bend screen
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the Looped wire sieve bend screen panel for food processing

The Looped wire sieve bend screen panel for food processing of a concave curved profile wire screen mounted in a frame with the screen openings perpendicular to the flow. The dsm sieve bend screen has greater capacity than a flat screen due to forces exerted as material flows against the curved surface.

Looped wire sieve bend screen panel also known as side hill screens, parabolic screens,rundown screens, gravityscreens and DSM screens, can be custom designed to separate solids from liquids in various applications including food processing, pulp and paper, waste water cleanup, surface water intakes,corn wet milling, coal preparation, and gold recovery.SS Johnson Sieve Bend Screens are cross-flow screens. The profile wires are slightly tilted so that the leading edge is position higher which greatly increases the dewatering capacity.A SS Johnson Sieve Bend Screens consists of a concave curved profile wire screen mounted in a frame with the screen openings perpendicular to the flow. A SS Johnson Sieve Bend Screens has greater capacity than a flat wedge screen due to forces exerted as material flows against the curved surface.

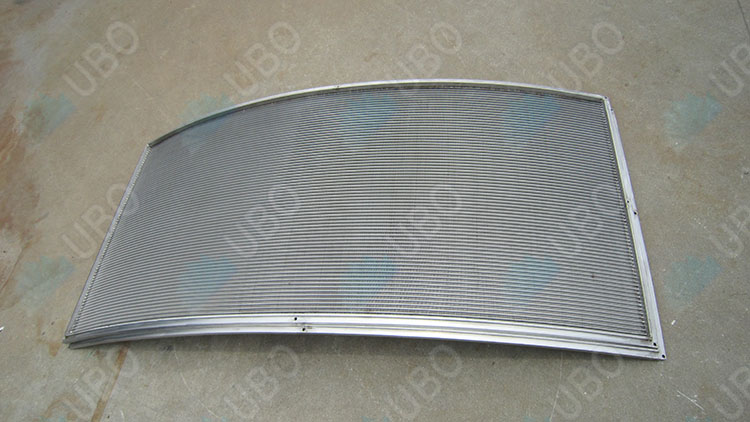

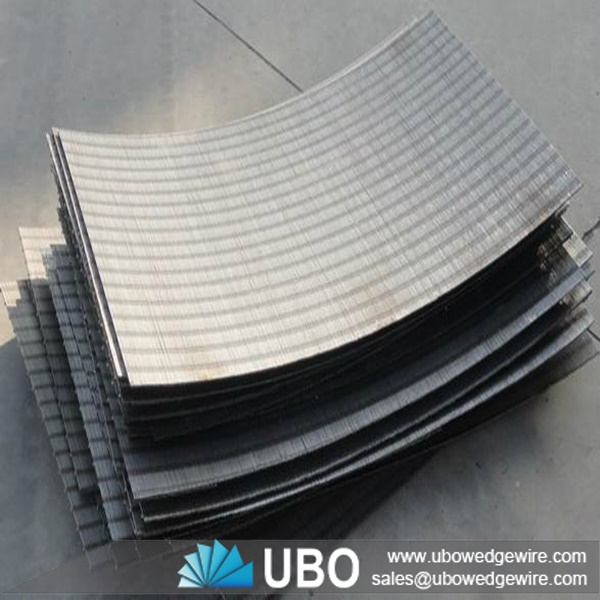

Looped wire sieve bend screen panel for food processing

Looped wire sieve bend screen panel for food processing

Looped wire sieve bend screen panel for food processing

Application of Looped wire sieve bend screen panel for food processing

Used in industries such as Sugar, Coal Mining & Quarrying, Mineral Processing, Cement, and Industrial & Urban Effluent Treatment etc.
Used as a pre-filter in urban & industrial waste treatment plants to improve the performance of the clarifier by drastically reducing the load.
Used for fiber removal in Starch industry.

Features of Looped wire sieve bend screen panel for food processing

Looped wire sieve bend screen panel for food processing is easy to penetrate, having good wear-resisting and corrosion resistance. With Trapezoidal cross-section, even gap, stable welding quality, large opening area, long life time, high strength and high load capacity, it can be made into various shapes. The dimensions, wire diameter, slot and frame structure can be customized.

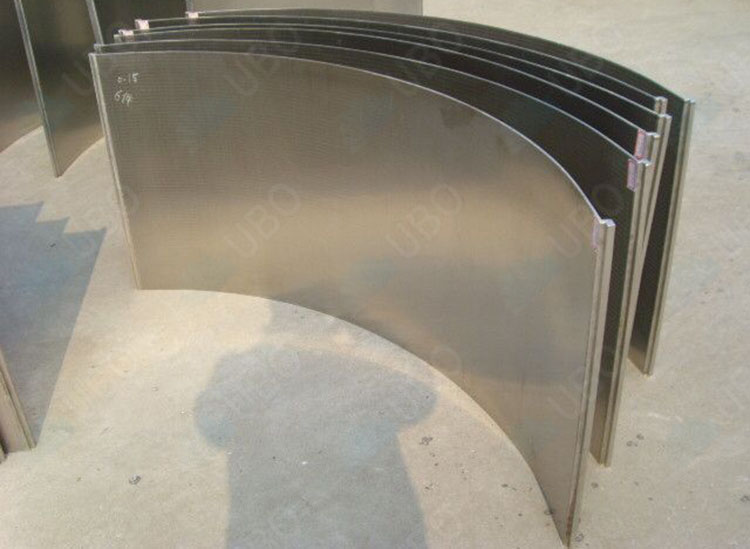

Looped wire sieve bend screen panel for food processing

Looped wire sieve bend screen panel for food processing

The specifications of the Looped wire sieve bend screen panel for food processing:

Looped wire sieve bend screen panel for food processing

Looped wire sieve bend screen panel

Material:

Low carton, low carton galvanized steel (LCG), steel treated with plastic spraying, stainless steel (304,316etc.)

Wedge Wire (mm):

Width : 1.50 1.80 2.30 3.00 3.30 3.70

Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Support Rod (mm):

Width : 2.30 3.00 3.30 3.70

Height : 2.70 3.60 4.70 5.60 6.30

Width:

from 1 inch -----45 inch.

Length:

Max 6 meters.

Slot size

Slot size

Radian:

120º,60º,45º as your request

The Packaging and Transportation of the Looped wire sieve bend screen panel for food processing:

Looped wire sieve bend screen panel for food processing
