Wedge Wire Hub Lateral Water Distributor

More Views

Wedge Wire Hub Lateral Water DistributorWedge Wire Hub Lateral Water DistributorWedge Wire Hub Lateral Water Distributor

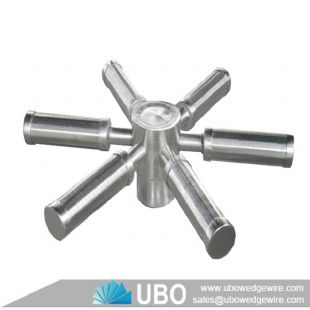

Wedge Wire Hub Lateral Water Distributor

Category:Profile screen laterals
Material:stainless steel 304, 304L, 304HC, 316, 316L, 321, 430 or upon request.
Properties:hub Laterals
Application:water-treatment, water well drilling, oil well drilling, mineral processing, coal-cleaning plant, refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the Wedge Wire Hub Lateral Water Distributor

The wedge wire hub lateral water distributor is designed for industrial or commercial water treatment and wastewater treatment systems. And the hub lateral suitable for diameters from 8 " to 96" pressure vessel. It is made of high quality stainless steel. The unique design ensures the entire uniformity of the flow velocity distribution in presure vessel. What's more, the special design avoid the occurrence of short circuit. By the way, the rational design of opening the slit also ensures a minimum pressure requirements.

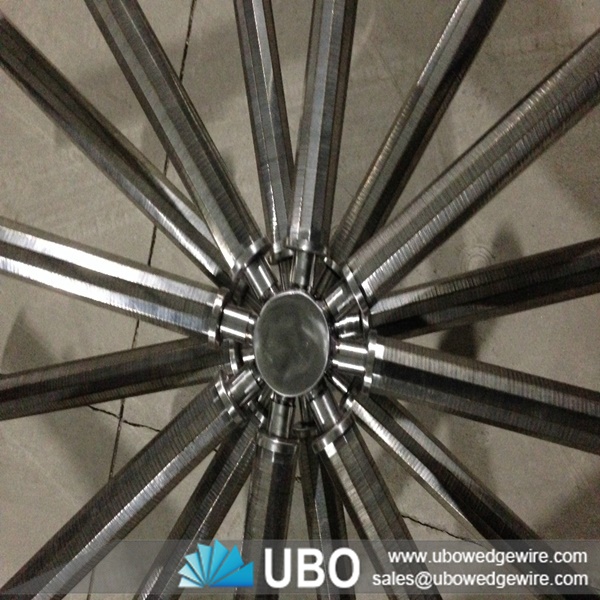

Wedge wire hub lateral water distributor

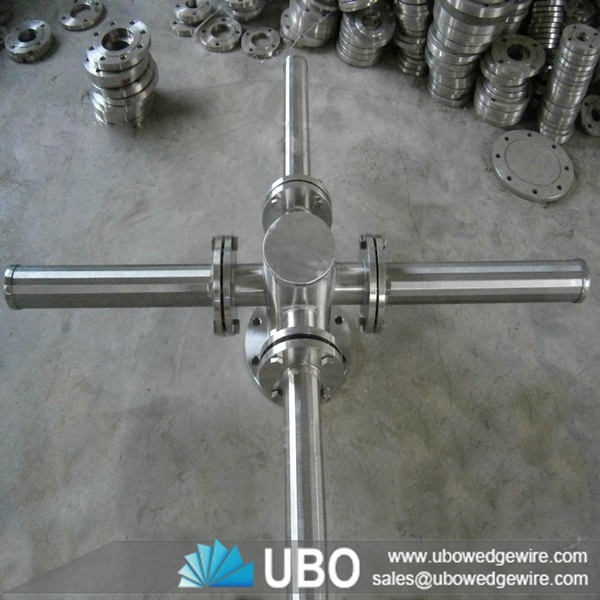

Wedge wire hub lateral water distributor



Application of Wedge Wire Hub Lateral Water Distributor

Hub and Header Lateral screen consist of a series of screen laterals connected to either a central-header pipe or a hub, they are important components of ion exchange units, media filters, sand filters, carbon strip vessels, carbon towers, clay filters and in many water and waster water treatment applications.

Features of Wedge Wire Hub Lateral Water Distributor

1. Screens with high open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.
2. Low cost operation.
3. Reduce the abrasion of the pump.

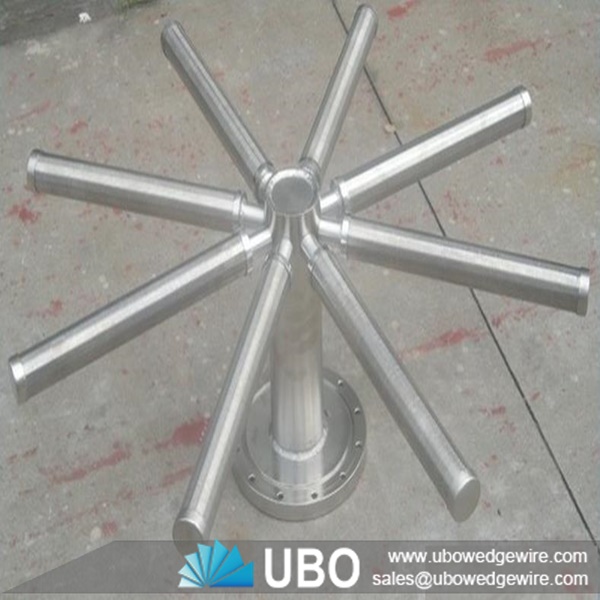

Wedge wire hub lateral water distributor

Wedge wire hub lateral water distributor

The specifications of the Wedge Wire Hub Lateral Water Distributor:

Wedge wire hub lateral water distributor

Material SS304, SS304L, SS316, SS316L, SS321, 904, C276, 2205, 2207, Duplex, Hastelloy, etc
Normal Lateral Tube QTY (PCS) 4, 6, 8, 12,16, etc. According to request, actual flow rating, and application.
Lateral OD Range (mm) 25 to 80mm, Customized
Normal Hub (mm) 108, 133, 219, Customized
Hub and Lateral Connector Types Thread, Flange
Diameter Range(mm) According to the tank diameter. (Usually 200mm shorter than tank diameter)
Slot Range(mm) Normal slot 0.2, 0.25, 0.3, 0.35, 0.4mm.
Slot can be customized.
Wedge Wire(mm) 1x2 1.5x2 2x3
Support Rod (mm) 1.5x2.5
2x3
1.8x2.5
2x3
2x3
2x4
Note Customized is Available

The Packaging and Transportation of the Wedge Wire Hub Lateral Water Distributor:

transportation of Wedge wire hub lateral water distributor
