SS wedge wire lateral distributor assembiles for water treatment

More Views

SS wedge wire lateral distributor assembiles for water treatmentSS wedge wire lateral distributor assembiles for water treatmentSS wedge wire lateral distributor assembiles for water treatment

SS wedge wire lateral distributor assembiles for water treatment

Category:Profile screen laterals
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:water distributor
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the SS wedge wire lateral distributor assembiles for water treatment

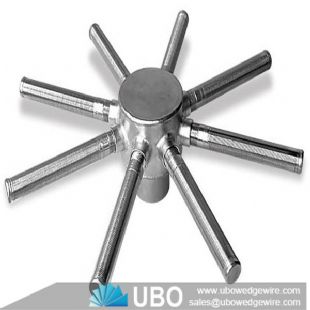

SS wedge wire lateral distributor assembiles for water treatment For Vessel Sand Filters, also called header lateral assemblies, areHeader Lateral Distributor hub radial laters for water treatment assemblies of horizontal herring bone style wedge wire screen laterals and vertical secured round hub. The screen lateral has inherent even pattern, which is made of stainless steel, hastelloy alloy steel and other alloy steels. The screen lateral has various slot size, wire size and diameters to suit common or customized applications.

SS wedge wire lateral distributor assembiles for water treatment made by UBO Screens promote even distribution while also avoiding flow/pressure concentrations. The non-plugging spider hub style design is ideal for accommodating disc head vessels. Made to your specification for size, open area and material, you can expect easy maintenance and exceptional long-term durability.
No matter the final design, you can count on the performance of our hub or Hub Distributor from UBO Screens.

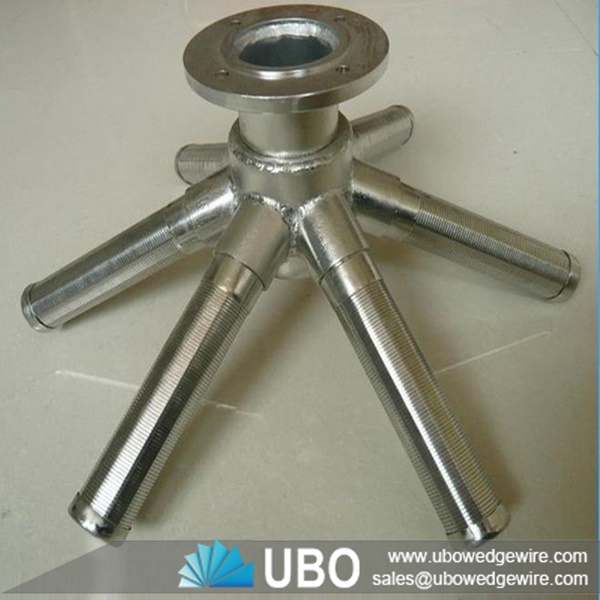

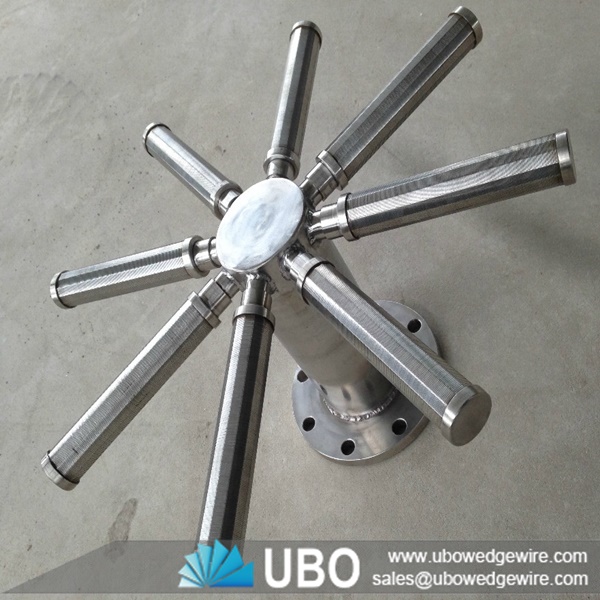

SS wedge wire lateral distributor assembiles for water treatment

SS wedge wire lateral distributor assembiles for water treatment

Application of SS wedge wire lateral distributor assembiles for water treatment


Application in deep well pump to dive the water pump, in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment; the petroleum industry, the petroleum product terminal filters; and the chemical acid, the alkali liquid filters, the ethyl alcohol and the organic solution recycling filters.

Features of SS wedge wire lateral distributor assembiles for water treatment

1. Screens with high open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.
2. Low cost operation.
3. Reduce the abrasion of the pump.

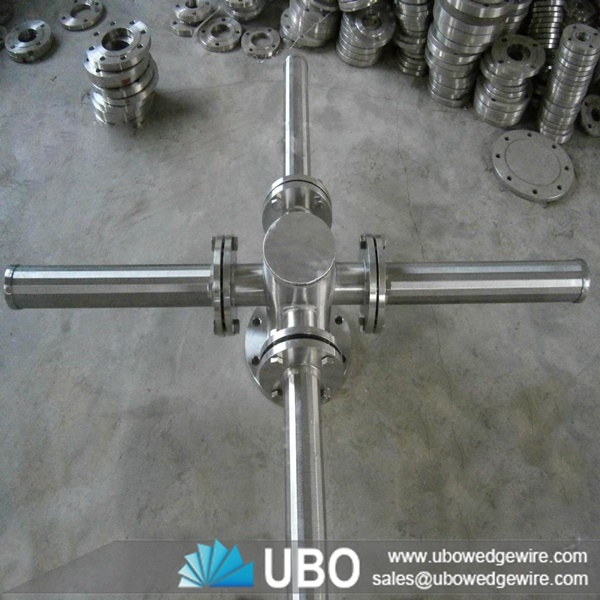

SS wedge wire lateral distributor assembiles for water treatment

SS wedge wire lateral distributor assembiles for water treatment



The specifications of the SS wedge wire lateral distributor assembiles for water treatment:

SS wedge wire lateral distributor assembiles for water treatment

Material

SS304, SS304L, SS316, SS316L, SS321, 904, C276, 2205,  2207, Duplex, Hastelloy, etc

Normal Lateral Tube QTY (PCS)

4, 6, 8, 12,16, etc. According to request, actual flow rating, and application.

Lateral OD Range (mm)

25 to 80mm, customized

Normal Hub (mm)

108, 133, 219, Customized

Hub and lateral connector types

Thread, Flange

Diameter Range(mm)

According to the tank diameter. (Usually 200mm shorter than tank diameter)

Slot Range(mm)

Normal slot 0.2, 0.25, 0.3, 0.35, 0.4mm.

Slot according to request.

Wedge Wire(mm)

1x2

1.5x2

2x3

Support Rod (mm)

1.5x2.5

2x3

1.8x2.5

2x3

2x3

2x4



Note

Customized According To Requirement

The Packaging and Transportation of the SS wedge wire lateral distributor assembiles for water treatment:

SS wedge wire lateral distributor assembiles for water treatment
