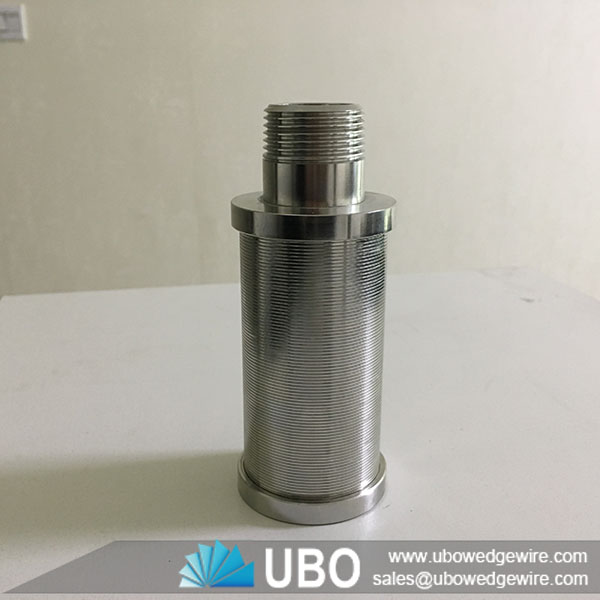

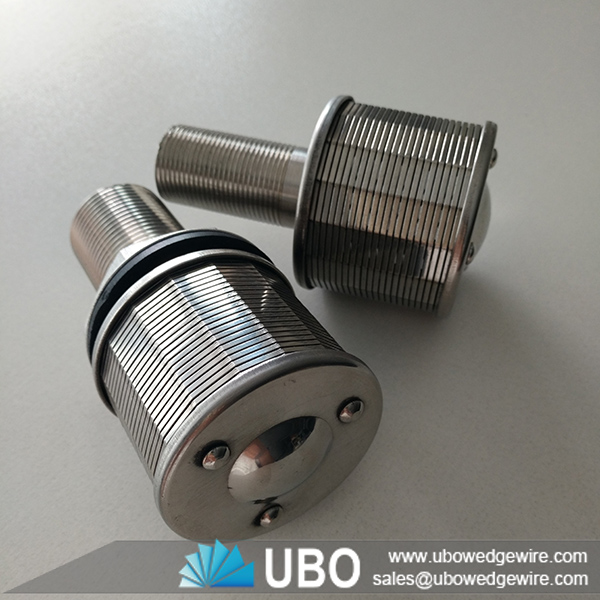

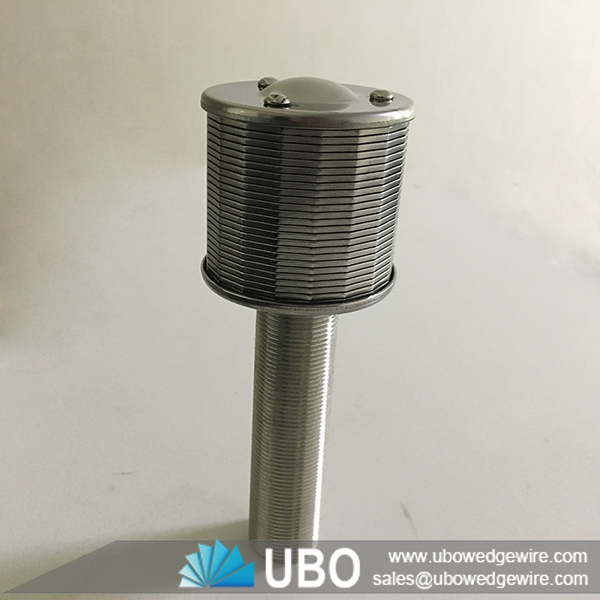

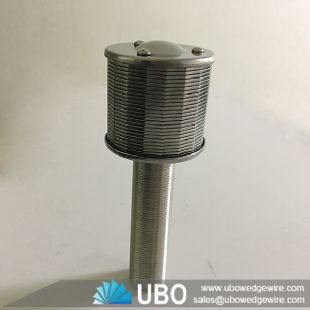

ss wedge wire screen sand filter nozzle

More Views

ss wedge wire screen sand filter nozzless wedge wire screen sand filter nozzless wedge wire screen sand filter nozzle

ss wedge wire screen sand filter nozzle

Category:Filter Nozzle
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:filter nozzle
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the ss wedge wire screen sand filter nozzle

The ss wedge wire screen sand filter nozzles are made from V shaped profile wire, which is spirally wound around a cage of longitudinal support rods. Each intersecting point of these wires is fusion welded, with an unique welding process. This spacing gives passage for water to enter. The entire process is completed on fully computerized machines. The pitch of winding gives different spacing between two adjacent turns of wire.

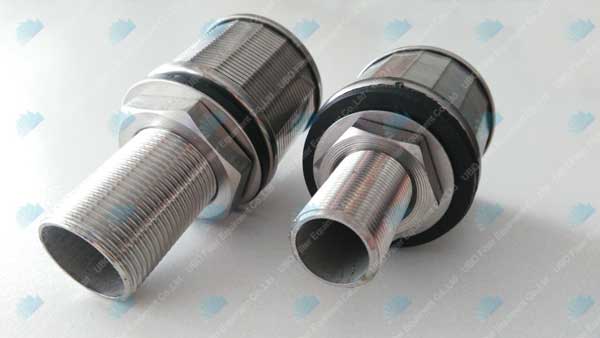

ss <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> sand filter nozzle

ss <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> sand filter nozzle

Application of ss wedge wire screen sand filter nozzle

Usage of Stainless steel filter and filler nozzle for diesal tank
used widely in down-flow reactors for liquid/solid or gas/solid separation. The liquid or gas can flow through the nozzles while the solids are retained in the vessel by the nozzles.

Feature of ss wedge wire screen sand filter nozzle

Stainless steel filter and filler nozzle have the features of great strength, precision, long service life and a wide range of applications in the field of process and engineering such as waste water treatment, sugar juice filtration, crude oil and natural gas production and vessel internals solving problems of solid / liquid and solid / gas separation, filtration of oils, greases, water, fuels, paints, food products, liquid cooling agents, and chemicals etc.

ss <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> sand filter nozzle

ss <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> sand filter nozzle

ss <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> sand filter nozzle

The specifications of the ss wedge wire screen sand filter nozzle:





ss <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> sand filter nozzle

Type

Slot

(mm)

Dimension

Flow Rating

(M3/H)

D(mm)

H(MM)

L(MM)

Thread

Fittings

UBO-0.5

0.25

45

45

90/request

M,NPT, G, PT(BSPT),Z,BSP, request

SS Gasket,

Rubber gasket,

Nut, request

0.5

UBO-1.0

0.25

53

45

90/request

1.0

UBO-1.5

0.25

57

45

90/request

1.5

UBO-2.0

0.25

57

55

100/request

2.0

UBO-2.5

0.25

70

55

100/request

2.5

UBO-3.0

0.25

70

70

120/request

3.0

Note

* All the above size are the normal size. Customized size is possible.

* UBO could help to design according to the application and requirement.

* The nozzles customized range as below:

1. Slot range: 0.05-2mm

2. Dimension: Diameter, Screen Height, Length could produce according to      actual requirement and application

3. Thread according to requirement

The Packaging and Transportation of the ss wedge wire screen sand filter nozzle:

ss <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> sand filter nozzle
