Welded wire Johnson type filter screen nozzle used in water filteration syetem

More Views

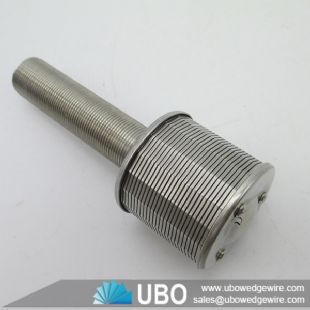

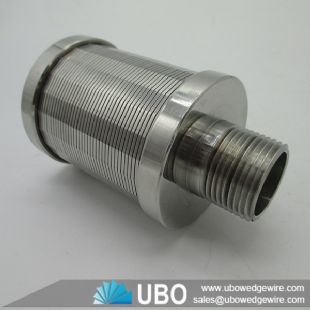

Welded wire Johnson type filter screen nozzle used in water filteration syetemWelded wire Johnson type filter screen nozzle used in water filteration syetemWelded wire Johnson type filter screen nozzle used in water filteration syetem

Welded wire Johnson type filter screen nozzle used in water filteration syetem

Category:Filter Nozzle
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedhe wire screen filter nozzle
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Welded wire Johnson type filter screen nozzle used in water filteration syetem

Welded wire Johnson type filter screen nozzles are widely used in various industries, especially suitable for water treatment or liquid filtration. The main part of the nozzle is stainless steel wedge wire screen. It’s a new type filter component. The filter nozzle has a high precision filtration ability. The minimum slot size is 20 micron.

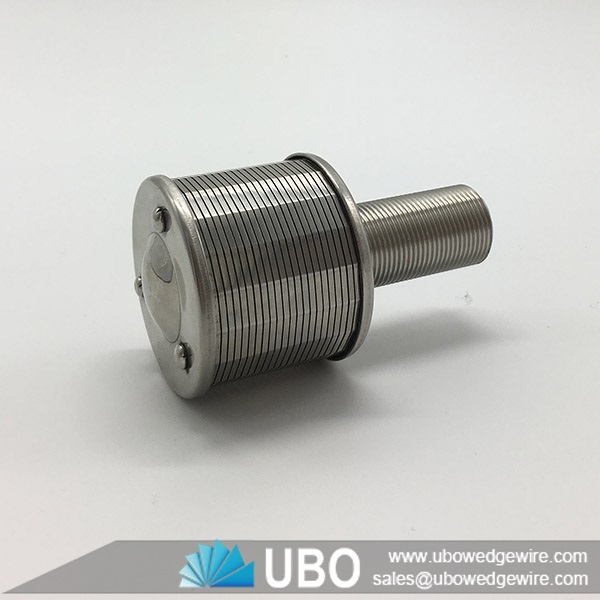

Welded wire Johnson type filter screen nozzle used in water filteration syetem

Application of Welded wire Johnson type filter screen nozzle used in water filteration syetem

Stainless steel oil flitered nozzle can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.

Advantages of Welded wire Johnson type filter screen nozzle used in water filteration syetem

Excellent roundness
Very good slot width precision
High mechanical load capacity
No form closure connection that would allow vibration of the profiled bars V-shaped wire around the twin tube water cap for metallurgical industry
Automated welding process for high-precision manufacturing
Perfectly adjusted screen basket profiles
Available for all screens
Surface finishing as required

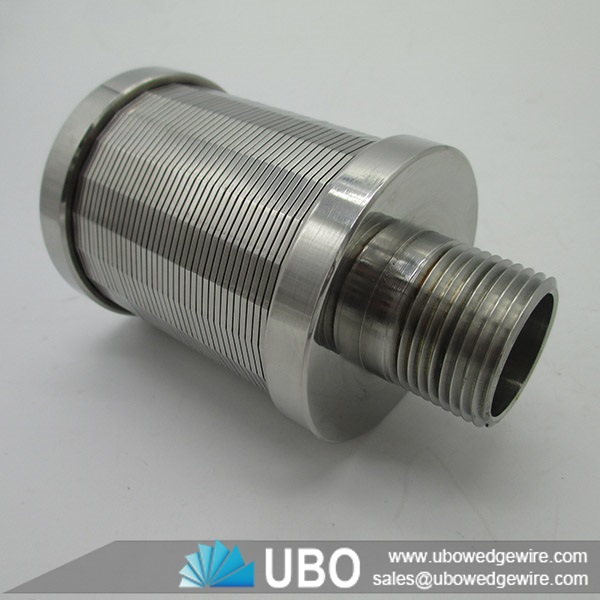

Welded wire Johnson type filter screen nozzle used in water filteration syetem

Specifications of Welded wire Johnson type filter screen nozzle used in water filteration syetem:

Welded wire Johnson type filter screen nozzle used in water filteration syetem

Type

Slot

(mm)

Dimension

Flow Rating

(M3/H)

D(mm)

H(MM)

L(MM)

Thread

Fittings

UBO-0.5

0.25

45

45

90/request

M,NPT, G, PT(BSPT),Z,BSP, request

SS Gasket,

Rubber gasket,

Nut, request

0.5

UBO-1.0

0.25

53

45

90/request

1.0

UBO-1.5

0.25

57

45

90/request

1.5

UBO-2.0

0.25

57

55

100/request

2.0

UBO-2.5

0.25

70

55

100/request

2.5

UBO-3.0

0.25

70

70

120/request

3.0



* All the above size are the normal size. Customized size is possible.

* UBO could help to design according to the application and requirement.

* The nozzles customized range as below:

1. Slot range: 0.05-2mm

2. Dimension: Diameter, Screen Height, Length could produce according to      actual requirement and application

3. Thread according to requirement

Packaging and Transportation of Welded wire Johnson type filter screen nozzle used in water filteration syetem:

Welded wire Johnson type filter screen nozzle used in water filteration syetem
