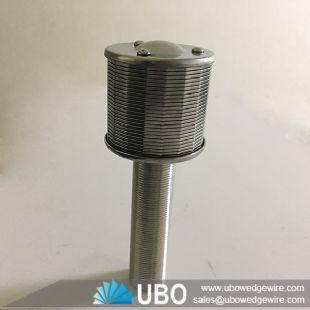

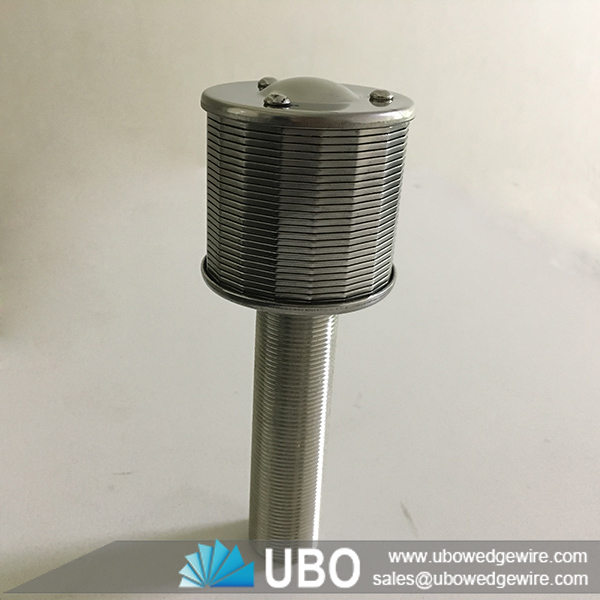

Wedge wire water filter nozzle strainer for water filter equipment bottomWedge wire water filter nozzle strainer for water filter equipment bottomWedge wire water filter nozzle strainer for water filter equipment bottom

Wedge wire water filter nozzle strainer for water filter equipment bottom

Category:Filter Nozzle
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:filter nozzle
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge wire water filter nozzle strainer for water filter equipment bottom

Wedge wire water filter nozzle strainer is composed of V-profile wire stainless steel which is spirally wrapped in certain equal slot. To maintain the slot size around inside and add extra strength are mounted. It has each cover for both ends of nozzle.Each wire and rod are made by spot welding. and fitting pipe is adjusted according to the thickness of set bottom plate.Nozzle is completed by welding fitting pipe to a cover of down end after setting screw according to the type of nut.

Wedge wire water filter nozzle strainer for water filter equipment bottom

Application of Wedge wire water filter nozzle strainer for water filter equipment bottom

Widely used in water softening treatment equipment, replace Polypropylene ( PP ) filter;sand filters, carbon filters, ion exchange systems, carbon absorbers,media retention, backwash retention, resin retention and resin traps.

Feature of Wedge wire water filter nozzle strainer for water filter equipment bottom

1. Screens with high open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.
2. Low cost operation.
3. Reduce the abrasion of the pump.
4. Extend the life span of well.

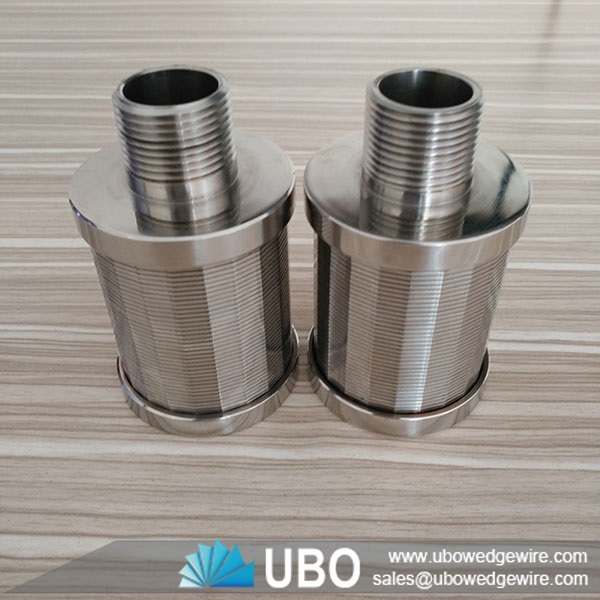

Other type filter nozzle

Wedge wire water filter nozzle strainer for water filter equipment bottom

Wedge wire water filter nozzle strainer for water filter equipment bottom

Specifications of Wedge wire water filter nozzle strainer for water filter equipment bottom:

Wedge wire water filter nozzle strainer for water filter equipment bottom



Type

Slot

(mm)

Dimension

Flow Rating

(M3/H)

D(mm)

H(MM)

L(MM)

Thread

Fittings

UBO-0.5

0.25

45

45

90/request

M,NPT, G, PT(BSPT),Z,BSP, request

SS Gasket,

Rubber gasket,

Nut, request

0.5

UBO-1.0

0.25

53

45

90/request

1.0

UBO-1.5

0.25

57

45

90/request

1.5

UBO-2.0

0.25

57

55

100/request

2.0

UBO-2.5

0.25

70

55

100/request

2.5

UBO-3.0

0.25

70

70

120/request

3.0

Note

* All the above size are the normal size. Customized size is possible.

* UBO could help to design according to the application and requirement.

* The nozzles customized range as below:

1. Slot range: 0.05-2mm

2. Dimension: Diameter, Screen Height, Length could produce according to      actual requirement and application

3. Thread according to requirement

Packaging and Transportation of Wedge wire water filter nozzle strainer for water filter equipment bottom:

Wedge wire water filter nozzle strainer for water filter equipment bottom
