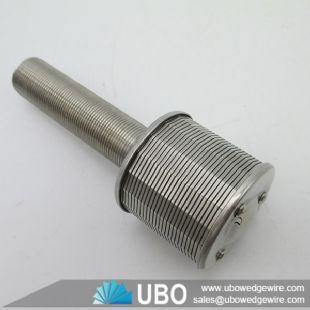

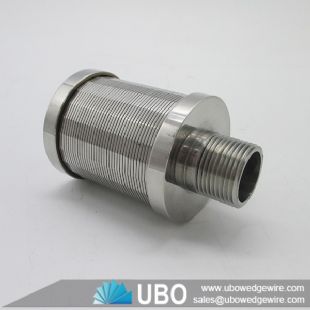

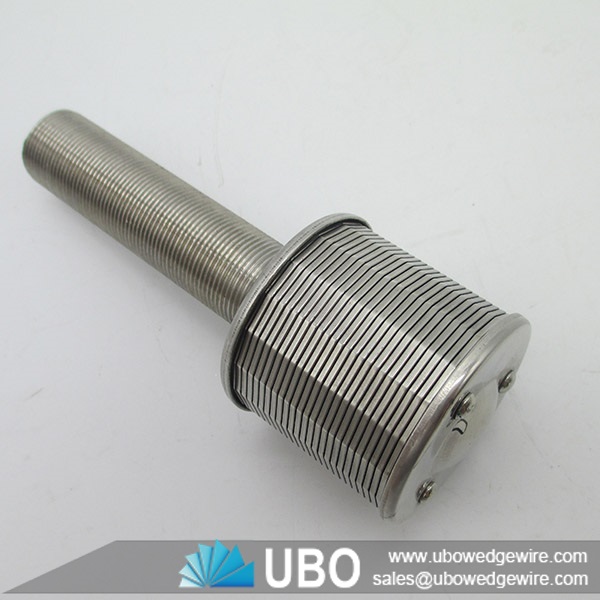

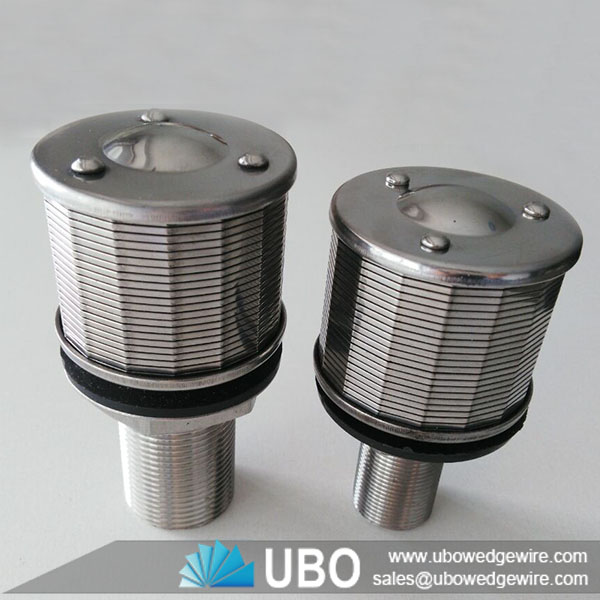

Wedge wire water filter nozzle strainer for ion exhcange

More Views

Wedge wire water filter nozzle strainer for ion exhcangeWedge wire water filter nozzle strainer for ion exhcangeWedge wire water filter nozzle strainer for ion exhcange

Wedge wire water filter nozzle strainer for ion exhcange

Category:Filter Nozzle
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:filter nozzle
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant, refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the Wedge wire water filter nozzle strainer for ion exhcange

Wedge wire water filter nozzle strainer consist of V-shape profile wire and the longitudinal support rods. Each intersecting point of these wires is fusion welded,so it has sturdy constriction and good mechanical property.
The V-shape section plane can avoid blockage,and make sure of the unimpeded water. The consecutive slot have more open area,and it can reduce the speed of the water entering to aviod the sand entering the screen under the great pressure,so Continuous Slot Wire Johnson Screen can filter sand better.

Wedge wire water filter nozzle strainer for ion exhcange

Wedge wire water filter nozzle strainer for ion exhcange

Wedge wire water filter nozzle strainer for ion exhcange



Feature of Wedge wire water filter nozzle strainer for ion exhcange

High strength;
Good resistance to abrasion and corrosion;
High rigidity;
Good in filtration and fluidity;
Flat panel surface;
Fairly well precision and roundness;
Long work time;
Easy to clean and back wash;
Uniform gap.

Application of Wedge wire water filter nozzle strainer for ion exhcange

Stainless steel oil flitered nozzle can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening,sugar mill, conversion of sea water into fresh water, the filter of food chemistry.

Wedge wire water filter nozzle strainer for ion exhcange

Wedge wire water filter nozzle strainer for ion exhcange

Wedge wire water filter nozzle strainer for ion exhcange



The specifications of the Wedge wire water filter nozzle strainer for ion exhcange:

Wedge wire water filter nozzle strainer for ion exhcange

Type

Slot

(mm)

Dimension

Flow Rating

(M3/H)

D(mm)

H(MM)

L(MM)

Thread

Fittings

UBO-0.5

0.25

45

45

90/request

M,NPT, G, PT(BSPT),Z,BSP, request

SS Gasket,

Rubber gasket,

Nut, request

0.5

UBO-1.0

0.25

53

45

90/request

1.0

UBO-1.5

0.25

57

45

90/request

1.5

UBO-2.0

0.25

57

55

100/request

2.0

UBO-2.5

0.25

70

55

100/request

2.5

UBO-3.0

0.25

70

70

120/request

3.0

Note

* All the above size are the normal size. Customized size is possible.

* UBO could help to design according to the application and requirement.

* The nozzles customized range as below:

1. Slot range: 0.05-2mm

2. Dimension: Diameter, Screen Height, Length could produce according to      actual requirement and application

3. Thread according to requirement

The Packaging and Transportation of the Wedge wire water filter nozzle strainer for ion exhcange:

Packing of Wedge wire water filter nozzle strainer for ion exhcange

transportation of Wedge wire water filter nozzle strainer for ion exhcange
