Wedge wire type media retention filter nozzle

More Views

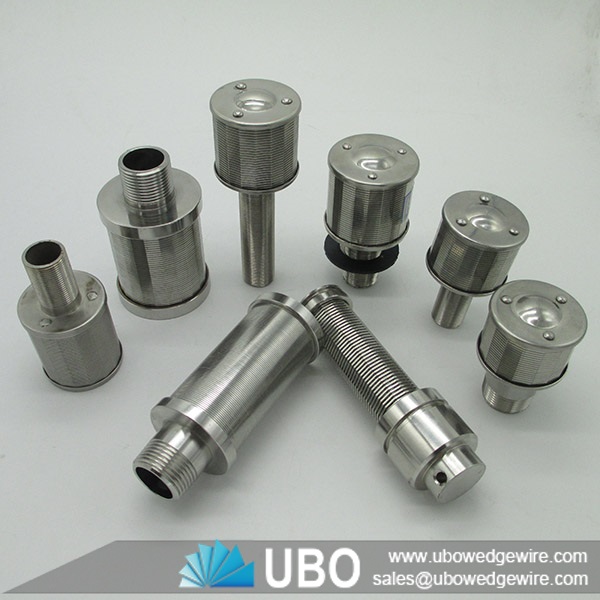

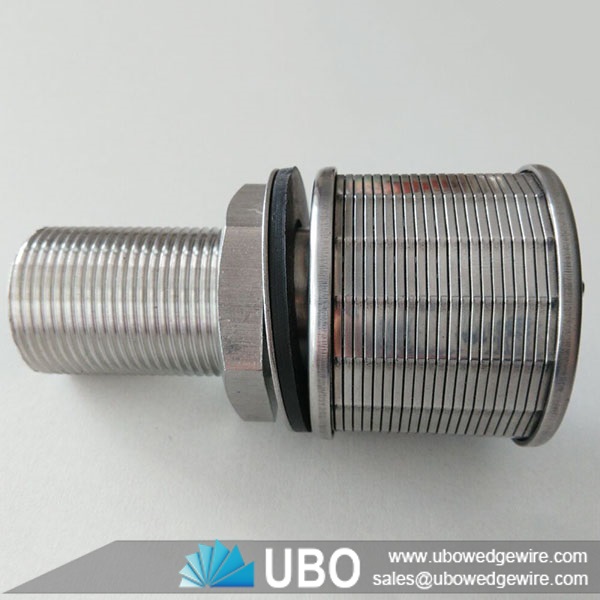

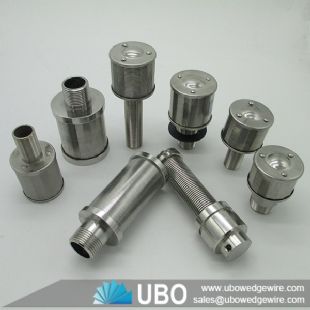

Wedge wire type media retention filter nozzleWedge wire type media retention filter nozzleWedge wire type media retention filter nozzle

Wedge wire type media retention filter nozzle

Category:Filter Nozzle
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:filter nozzle
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant, refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the Wedge wire type media retention filter nozzle

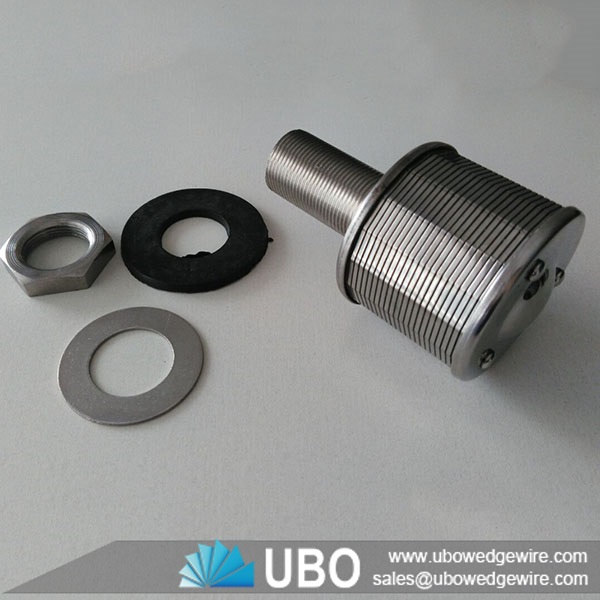

Wedge wire type media retention filter nozzles are fabricated with a blind cap on one end and washer fixed with a threaded stem on the other end and can be secured with a nut and washer, usually installed in a vessel by an orifice plate.

These nozzles are manufactured to suit customer requirements and are not restricted by screen diameter, connection type, slot or length. Nozzles are used by most leading filtration manufacturers in common water treatment processes for activated carbon absorption, removal of suspended solids, sand, gravel or ion exchange.

Such nozzles are appropriate for these applications due to its economical, non-plugging, high open area, and corrosion resistant design.

Wedge wire type media retention filter nozzle

Wedge wire type media retention filter nozzle

Wedge wire type media retention filter nozzle

Benefits of Wedge wire type media retention filter nozzle

Continuous slot design provides increased open area for better collection.
Stronger and more durable
Wide range of profile wires are available to suit most applications
Non-clogging: the continuous slot formed by the V-shaped surface wires ensures a two-point contact between the particles and the slot which minimizes clogging
High-precision slot sizes slot sizes are available to meet customer's requirements
Surface filtration: the V-shaped surface wires allow easy cleaning by mechanical scraping or back flushing
Low pressure-drop

Applications of Wedge wire type media retention filter nozzle

Wedge wire nozzles are effective in a wide range of water treatment and other industrial applications for filtering and screening. Such as, under drain media retention elements, flow distributors in demineralizers, water softeners in pressure and gravity sand filters.
Except for filtering and screening applications, wedge wire nozzles have other applications. Just install several nozzles uniformly to be used as collectors at the bottom of the vessels.

\Wedge wire type media retention filter nozzle

The specifications of the Wedge wire type media retention filter nozzle:

Wedge wire type media retention filter nozzle

Type

Slot

(mm)

Dimension

Flow Rating

(M3/H)

D(mm)

H(MM)

L(MM)

Thread

Fittings

UBO-0.5

0.25

45

45

90/request

M,NPT, G, PT(BSPT),Z,BSP, request

SS Gasket,

Rubber gasket,

Nut, request

0.5

UBO-1.0

0.25

53

45

90/request

1.0

UBO-1.5

0.25

57

45

90/request

1.5

UBO-2.0

0.25

57

55

100/request

2.0

UBO-2.5

0.25

70

55

100/request

2.5

UBO-3.0

0.25

70

70

120/request

3.0

Note

* All the above size are the normal size. Customized size is possible.

* UBO could help to design according to the application and requirement.

* The nozzles customized range as below:

1. Slot range: 0.05-2mm

2. Dimension: Diameter, Screen Height, Length could produce according to      actual requirement and application

3. Thread according to requirement

The Packaging and Transportation of the Wedge wire type media retention filter nozzle:

Wedge wire type media retention filter nozzle

Orders and Returns

If you are interested in receiving more information or have a question regarding any of our products. Please fill out the form below and we will contact you within 24-48 hours.
