Sugar mill stainless steel filter nozzle strainer screen

More Views

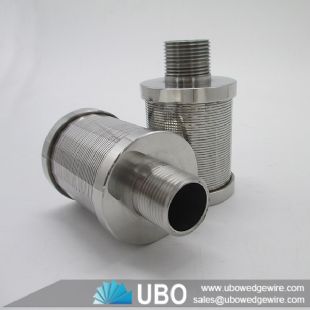

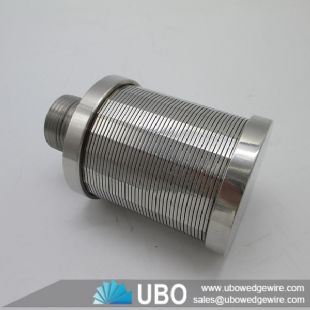

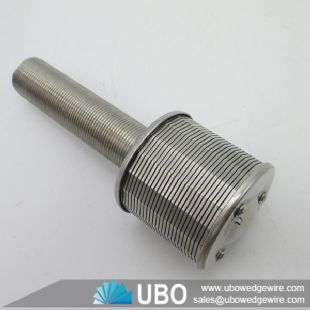

Sugar mill stainless steel filter nozzle strainer screenSugar mill stainless steel filter nozzle strainer screenSugar mill stainless steel filter nozzle strainer screen

Sugar mill stainless steel filter nozzle strainer screen

Category:Filter Nozzle
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:filter nozzle
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant, refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the Sugar mill stainless steel filter nozzle strainer screen

UBO manufactures Sugar mill stainless steel filter nozzle strainer screen using a variety of materials to ensure long life and reliable performance. The non-plugging, continuous slot design makes UBO nozzles ideal for applications that involve the retention of sand, activated carbon, ion exchange resin and more. They withhold the media while allowing the treated liquid to pass through.
If needed, YOUBIOU (UBO) can also custom manufacture nozzles to your exact specifications, including assembled nozzle.

Sugar mill stainless steel filter nozzle strainer screen is composed of V-profile wire stainless steel which is spirally wrapped in certain equal slot. To maintain the slot size around inside and add extra strength are mounted. It has each cover for both ends of nozzle. Each wire and rod are made by spot welding. and fitting pipe is adjusted according to the thickness of set bottom plate. Nozzle is completed by welding fitting pipe to a cover of down end after setting screw according to the type of nut.

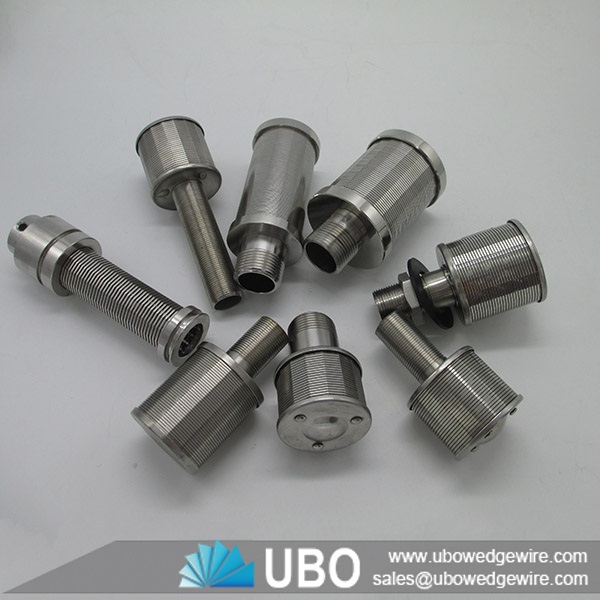

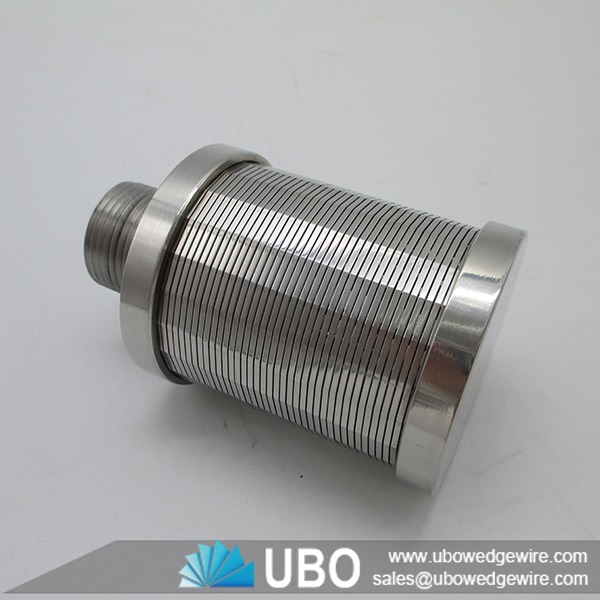

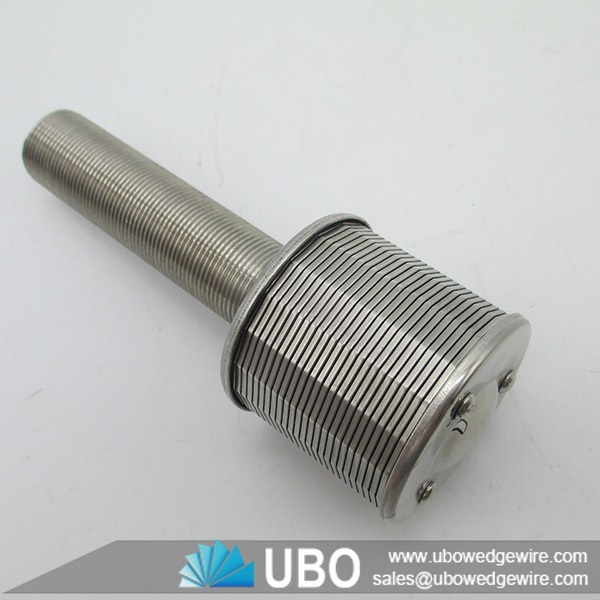

Sugar mill stainless steel filter nozzle strainer screen

Sugar mill stainless steel filter nozzle strainer screen

Sugar mill stainless steel filter nozzle strainer screen

Advantages of Sugar mill stainless steel filter nozzle strainer screen

Excellent roundness
Very good slot width precision
High mechanical load capacity
No form closure connection that would allow vibration of the profiled bars V-shaped wire around the twin tube water cap for metallurgical industry
Automated welding process for high-precision manufacturing
Perfectly adjusted screen basket profiles
Available for all screens
Surface finishing as required

Application of Sugar mill stainless steel filter nozzle strainer screen

The wedge wire screen filter nozzle can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, sugar mills, conversion of sea water into fresh water, the filter of food chemistry.

Application of Sugar mill stainless steel filter nozzle strainer screen





The specifications of the Sugar mill stainless steel filter nozzle strainer screen:



Sugar mill stainless steel filter nozzle strainer screen

Type

Slot

(mm)

Dimension

Flow Rating

(M3/H)

D(mm)

H(MM)

L(MM)

Thread

Fittings

UBO-0.5

0.25

45

45

90/request

M,NPT, G, PT(BSPT),Z,BSP, request

SS Gasket,

Rubber gasket,

Nut, request

0.5

UBO-1.0

0.25

53

45

90/request

1.0

UBO-1.5

0.25

57

45

90/request

1.5

UBO-2.0

0.25

57

55

100/request

2.0

UBO-2.5

0.25

70

55

100/request

2.5

UBO-3.0

0.25

70

70

120/request

3.0

Note

* All the above size are the normal size. Customized size is possible.

* UBO could help to design according to the application and requirement.

* The nozzles customized range as below:

1. Slot range: 0.05-2mm

2. Dimension: Diameter, Screen Height, Length could produce according to      actual requirement and application

3. Thread according to requirement

The Packaging and Transportation of the Sugar mill stainless steel filter nozzle strainer screen:

Sugar mill stainless steel filter nozzle strainer screen
