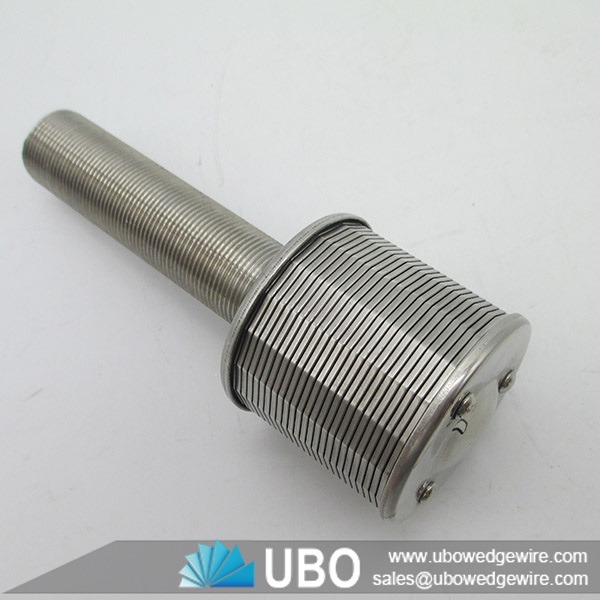

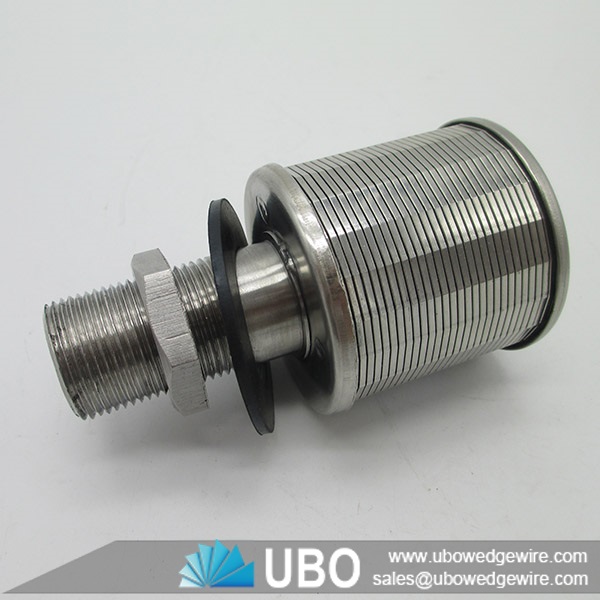

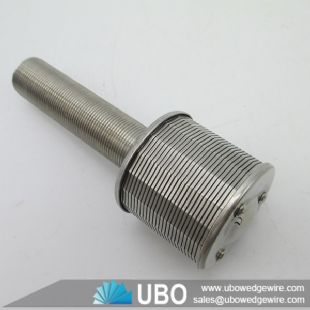

Stainless steel Johnson ion exchange nozzles filter

More Views

Stainless steel Johnson ion exchange nozzles filterStainless steel Johnson ion exchange nozzles filterStainless steel Johnson ion exchange nozzles filter

Stainless steel Johnson ion exchange nozzles filter

Category:Filter Nozzle
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:filter nozzle
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant, refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the Stainless steel Johnson ion exchange nozzles filter

UBO is specialized in producing and distributing Stainless steel Johnson ion exchange nozzles filters are used in ion exchange equipment or filters. The ion exchange nozzles are generally installed on multi-well plates to replace the old quartz sand mats to prevent the loss of resin, reduce resistance during backwashing, and allow the resin to fully expand.

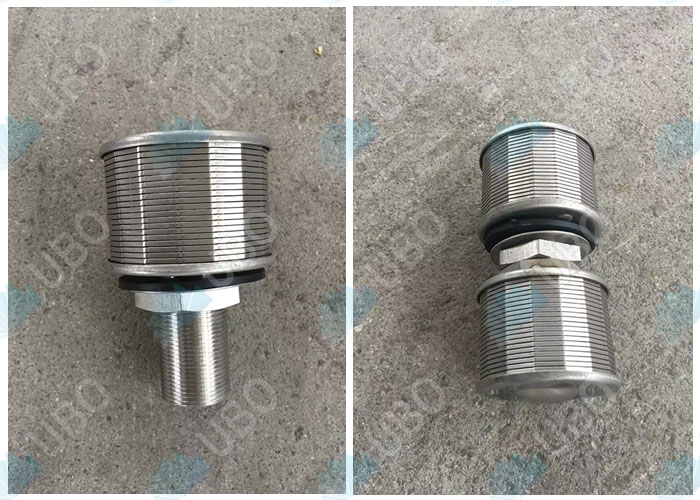

Stainless steel Johnson ion exchange nozzles filter

Stainless steel Johnson ion exchange nozzles filter

Application of Stainless steel Johnson ion exchange nozzles filter

Filter nozzle used in liquid/solid or gas/solid separation. Their design and quantity will vary depending on application and customer-flow requirements. Nozzles allow a more effective use of the treatment media.

Advantages of Stainless steel Johnson ion exchange nozzles filter

1. Type 316L stainless steel construction.
2. Continuous slot design provide large circulation area
3. Standard nozzle are 2in/51mm diameter and can be attached to the plate either with threaded end fittings or "L" blots.
4. Standard slot opening is typically range between 0.006”(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.
5. Wedge wire screen is highly resistant to plugging.
6. Choice of either 3/4” NPT or 1” NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.
7. Unaffected by temperature, corrosion resistant, aging resistant, long life span, easy change, saftey and enviormental friendly.

Stainless steel Johnson ion exchange nozzles filter

Stainless steel Johnson ion exchange nozzles filter



The specifications of the Stainless steel Johnson ion exchange nozzles filter:

Stainless steel Johnson ion exchange nozzles filter

Type

Slot

(mm)

Dimension

Flow Rating

(M3/H)

D(mm)

H(MM)

L(MM)

Thread

Fittings

UBO-0.5

0.25

45

45

90/request

M,NPT, G, PT(BSPT),Z,BSP, request

SS Gasket,

Rubber gasket,

Nut, request

0.5

UBO-1.0

0.25

53

45

90/request

1.0

UBO-1.5

0.25

57

45

90/request

1.5

UBO-2.0

0.25

57

55

100/request

2.0

UBO-2.5

0.25

70

55

100/request

2.5

UBO-3.0

0.25

70

70

120/request

3.0

Note

* All the above size are the normal size. Customized size is possible.

* UBO could help to design according to the application and requirement.

* The nozzles customized range as below:

1. Slot range: 0.05-2mm

2. Dimension: Diameter, Screen Height, Length could produce according to      actual requirement and application

3. Thread according to requirement

The Packaging and Transportation of the Stainless steel Johnson ion exchange nozzles filter:

packing of Stainless steel Johnson ion exchange nozzles filter

transportation of Stainless steel Johnson ion exchange nozzles filter
