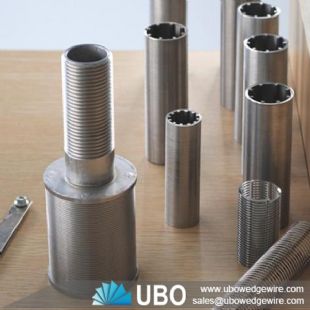

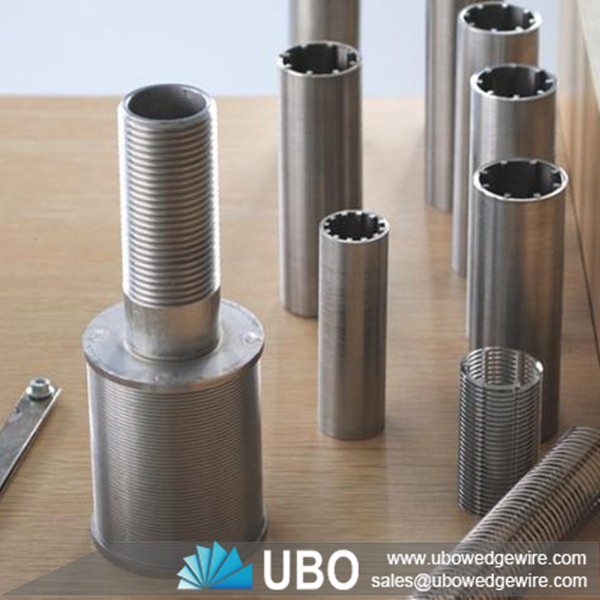

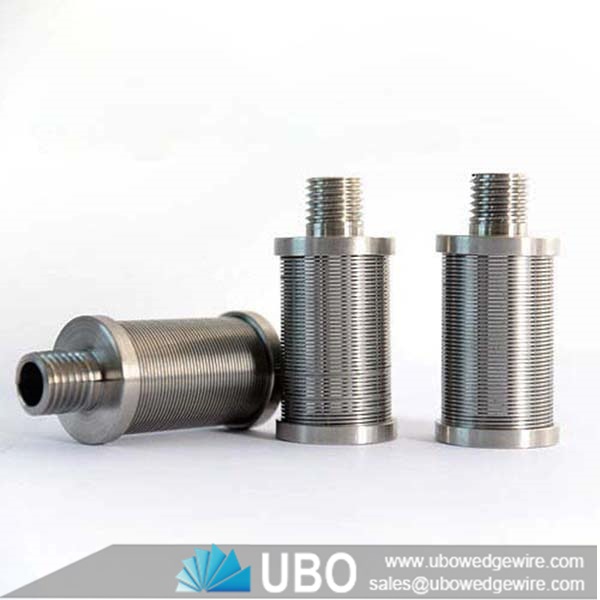

Stainless Steel Single tube type water strainer nozzle

More Views

Stainless Steel Single tube type water strainer nozzleStainless Steel Single tube type water strainer nozzleStainless Steel Single tube type water strainer nozzle

Stainless Steel Single tube type water strainer nozzle

Category:Filter Nozzle
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen nozzle
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the Stainless Steel Single tube type water strainer nozzle

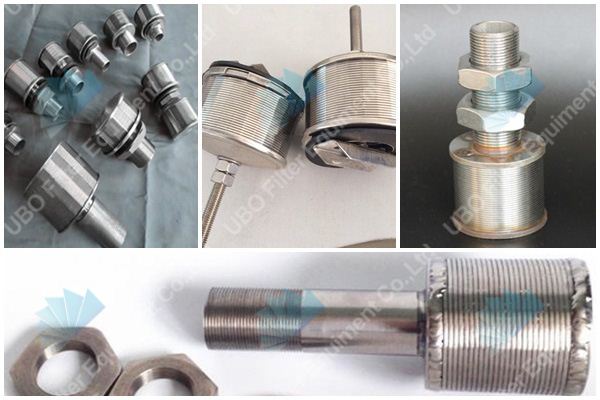

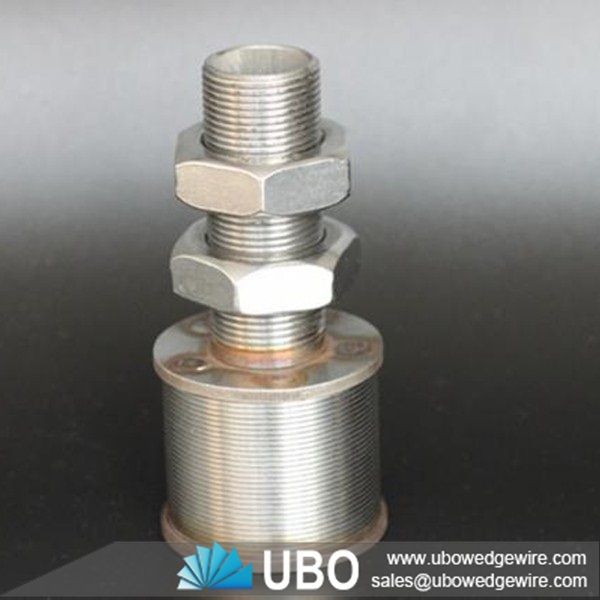

Stainless Steel Single tube type water strainer nozzle is composed of V-profile wire stainless steel which is spirally wrapped in certain equal slot. To maintain the slot size around inside and add extra strength are mounted. It has each cover for both ends of nozzle.Each wire and rod are made by spot welding. and fitting pipe is adjusted according to the thickness of set bottom plate.Nozzle is completed by welding fitting pipe to a cover of down end after setting screw according to the type of nut.

Application of Stainless Steel Single tube type water strainer nozzle

The wedge wire screen filter nozzle can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.

Advantages of Stainless Steel Single tube type water strainer nozzle

Great mechanical strength
Highly resistant to abrasivity and vibration.
It can hold more pressure and temperature compared to the perforated sheet screen.
Longer screen life.
Larger useful area than that of the standard perforated sheet screen.
The wedge wire screen can be used in any of INOXPA filters.
The wedge wire screen is assembled to the filter body by clamp, this allows an easy and quick disassembling for cleaning.
It is possible to clean the wedge wire screen with a reversed flow (back flushing).



Stainless Steel Single tube type water strainer nozzle

The specifications of the Stainless Steel Single tube type water strainer nozzle:

Stainless Steel Single tube type water strainer nozzle

Slot

Dimension

Flow area/mm2

(Slot:0.2mm)

D

H

L

M

L1

1

0.2-0.5

45

30

180

25

According to custom’s request

330

2

45

40

190

25

450

3

53

40

190

30

500

4

53

50

200

30

630

5

53

40

235

32

500

6

57

40

190

32

605

7

57

50

200

32

750

The Packaging and Transportation of the Stainless Steel Single tube type water strainer nozzle:

Stainless Steel Single tube type water strainer nozzle
