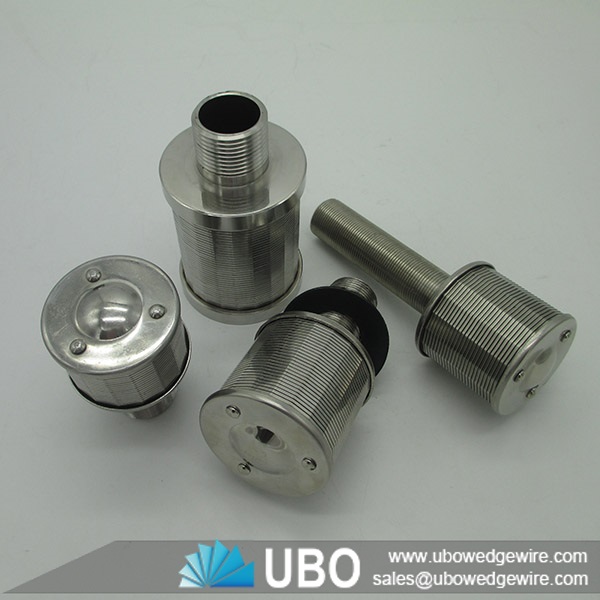

Stainless Steel Industrial wedge wire Water Softener System Nozzles Filter

More Views

Stainless Steel Industrial wedge wire Water Softener System Nozzles FilterStainless Steel Industrial wedge wire Water Softener System Nozzles FilterStainless Steel Industrial wedge wire Water Softener System Nozzles Filter

Stainless Steel Industrial wedge wire Water Softener System Nozzles Filter

Category:Filter Nozzle
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:filter nozzle
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the Stainless Steel Industrial wedge wire Water Softener System Nozzles Filter

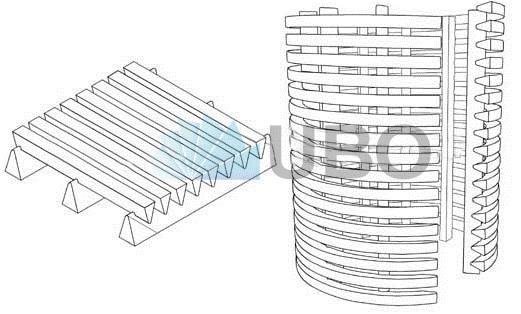

Stainless Steel Industrial wedge wire Water Softener System Nozzles Filter is composed of V-profile wire stainless steel which is spirally wrapped in certain equal slot. To maintain the slot size around inside and add extra strength are mounted. It has each cover for both ends of nozzle.Each wire and rod are made by spot welding. and fitting pipe is adjusted according to the thickness of set bottom plate.Nozzle is completed by welding fitting pipe to a cover of down end after setting screw according to the type of nut.

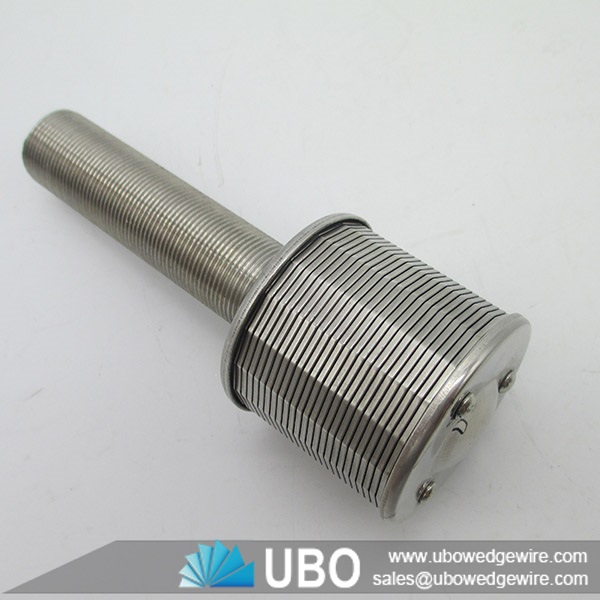

Stainless Steel Industrial wedge wire Water Softener System Nozzles Filter

Application of Stainless Steel Industrial wedge wire Water Softener System Nozzles Filter

Widely used in water softening treatment equipment, replace Polypropylene ( PP ) filter;sand filters, carbon filters, ion exchange systems, carbon absorbers,media retention, backwash retention, resin retention and resin traps.

Features of Stainless Steel Industrial wedge wire Water Softener System Nozzles Filter

1. Type 316L stainless steel construction.
2. Continuous slot design provide large circulation area
3. Standard nozzle are 2in/51mm diameter and can be attached to the plate either with threaded end fittings or "L" blots.
4. Standard slot opening is typically range between 0.006”(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.
5. Wedge wire screen is highly resistant to plugging.
6. Choice of either 3/4” NPT or 1” NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.
7. Unaffected by temperature, corrosion resistant, aging resistant, long life span, easy change, saftey and enviormental friendly.

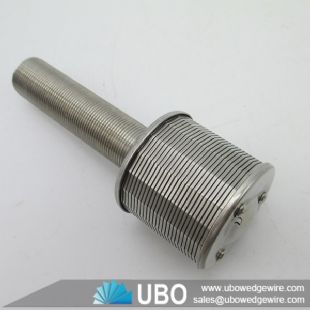

Stainless Steel Industrial wedge wire Water Softener System Nozzles Filter

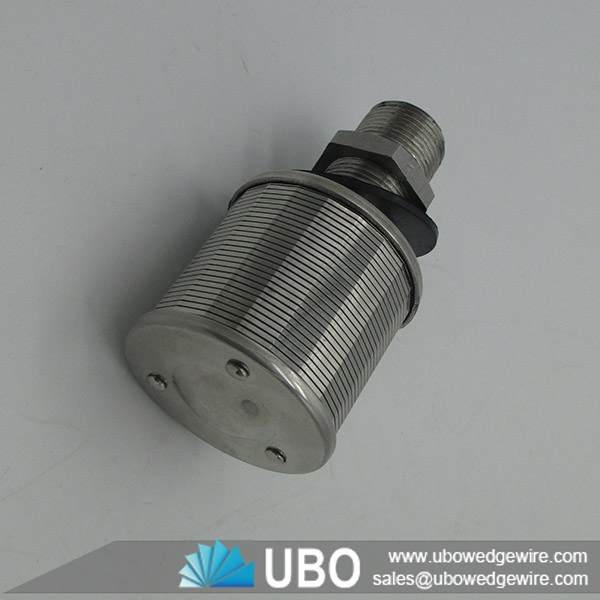

Stainless Steel Industrial wedge wire Water Softener System Nozzles Filter

The specifications of the Stainless Steel Industrial wedge wire Water Softener System Nozzles Filter:



Stainless Steel Industrial wedge wire Water Softener System Nozzles Filter

Type

Slot

(mm)

Dimension

Flow Rating

(M3/H)

D(mm)

H(MM)

L(MM)

Thread

Fittings

UBO-0.5

0.25

45

45

90/request

M,NPT, G, PT(BSPT),Z,BSP, request

SS Gasket,

Rubber gasket,

Nut, request

0.5

UBO-1.0

0.25

53

45

90/request

1.0

UBO-1.5

0.25

57

45

90/request

1.5

UBO-2.0

0.25

57

55

100/request

2.0

UBO-2.5

0.25

70

55

100/request

2.5

UBO-3.0

0.25

70

70

120/request

3.0

Note

* All the above size are the normal size. Customized size is possible.

* UBO could help to design according to the application and requirement.

* The nozzles customized range as below:

1. Slot range: 0.05-2mm

2. Dimension: Diameter, Screen Height, Length could produce according to      actual requirement and application

3. Thread according to requirement

The Packaging and Transportation of the Stainless Steel Industrial wedge wire Water Softener System Nozzles Filter:

Stainless Steel Industrial wedge wire Water Softener System Nozzles Filter
