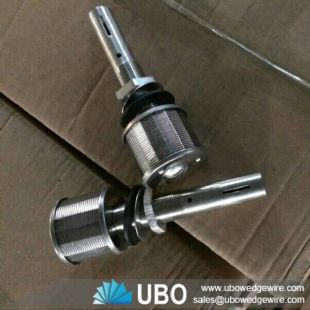

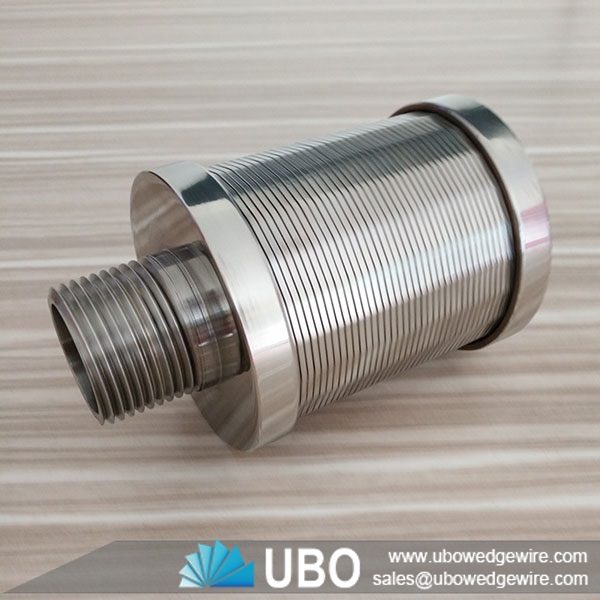

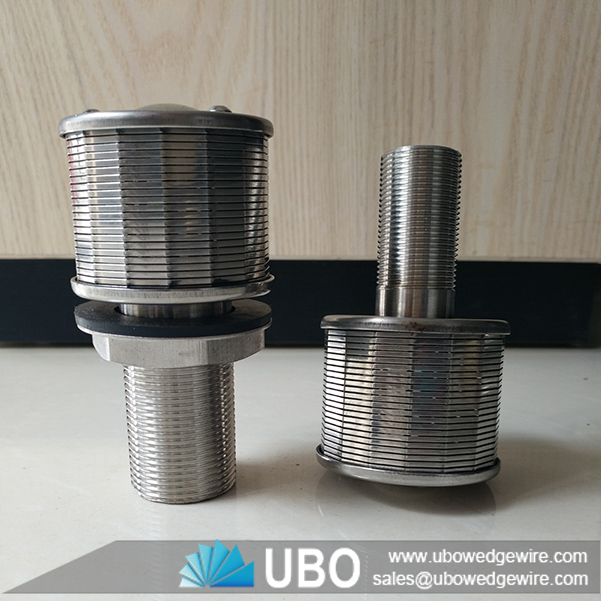

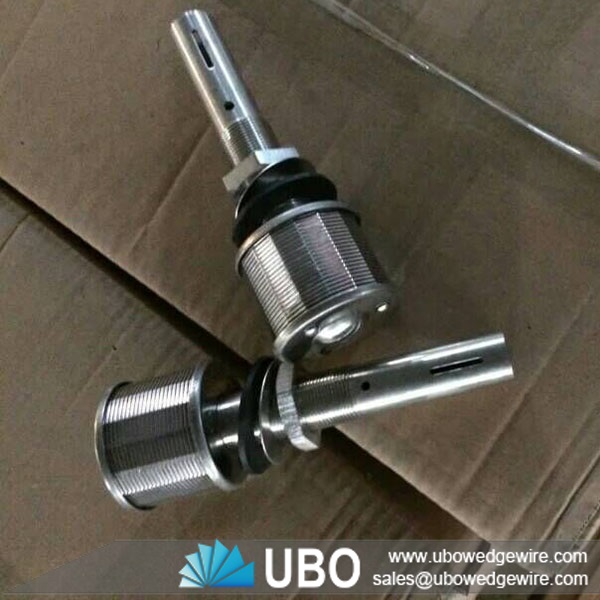

Customized SS nozzle screen filters wedge wire structure

More Views

Customized SS nozzle screen filters wedge wire structureCustomized SS nozzle screen filters wedge wire structureCustomized SS nozzle screen filters wedge wire structure

Customized SS nozzle screen filters wedge wire structure

Category:Filter Nozzle
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:filter nozzle
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the Customized SS nozzle screen filters wedge wire structure

UBO supply Customized SS nozzle screen filters wedge wire structure, in order to make the slot v-shaped.It can stop the impurities very well.
The wedge wire was welded on the support wire well-proportioned and have perfect roundness. Ensure the screen have bigger filter area and non obstructive, avoid the high concentration of impurities
After work for a period of time, the filter can be back flush.It can use for many times.
Filtering direction from outside to inside (FOTI)

Customized SS nozzle screen filters wedge wire structure

Application of Customized SS nozzle screen filters wedge wire structure

Above mentioned designs are used widely in down-flow reactors for liquid/solid or gas/solid separation. The liquid or gas can flow through the nozzles while the solids are retained in the vessel by the nozzles

Features of Customized SS nozzle screen filters wedge wire structure

Great mechanical strength
Highly resistant to abrasivity and vibration.
It can hold more pressure and temperature compared to the perforated sheet screen.
Longer screen life.
Larger useful area than that of the standard perforated sheet screen.
The wedge wire screen can be used in any of INOXPA filters.
The wedge wire screen is assembled to the filter body by clamp, this allows an easy and quick disassembling for cleaning.

Customized SS nozzle screen filters wedge wire structure

Customized SS nozzle screen filters wedge wire structure

Customized SS nozzle screen filters wedge wire structure

Customized SS nozzle screen filters wedge wire structure

Customized SS nozzle screen filters wedge wire structure



The specifications of the Customized SS nozzle screen filters wedge wire structure:



Customized SS nozzle screen filters wedge wire structure

Type

Slot

(mm)

Dimension

Flow Rating

(M3/H)

D(mm)

H(MM)

L(MM)

Thread

Fittings

UBO-0.5

0.25

45

45

90/request

M,NPT, G, PT(BSPT),Z,BSP, request

SS Gasket,

Rubber gasket,

Nut, request

0.5

UBO-1.0

0.25

53

45

90/request

1.0

UBO-1.5

0.25

57

45

90/request

1.5

UBO-2.0

0.25

57

55

100/request

2.0

UBO-2.5

0.25

70

55

100/request

2.5

UBO-3.0

0.25

70

70

120/request

3.0



* All the above size are the normal size. Customized size is possible.

* UBO could help to design according to the application and requirement.

* The nozzles customized range as below:

1. Slot range: 0.05-2mm

2. Dimension: Diameter, Screen Height, Length could produce according to      actual requirement and application

3. Thread according to requirement
